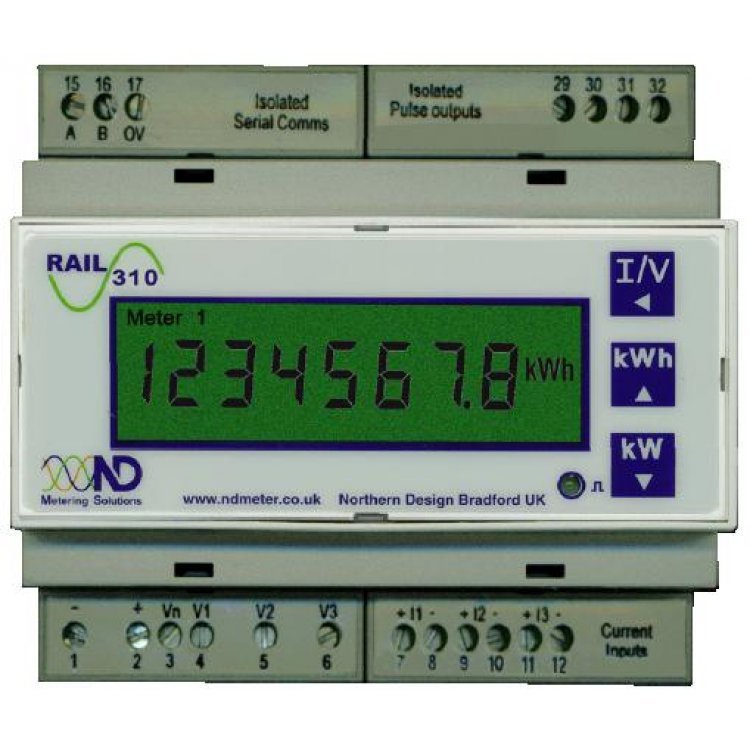

Northern Design Rail 310 Triple 1Ø Meter
- Current Inputs: 5A, 1A or 0.333V (Depending on model)
- Voltage Input: 230V
- System: 3 x Single Phase Load with common Neutral
- Accuracy: Class 1
- Outputs: 3 Isolated Pulse outputs (1 per phase) and Modbus RS485 (Depending on model)
- Right First Time Auto CT Rotation Installation Aid
- Housing: DIN-Rail (6 modules)
- Warranty: 5 Year
Product Details
The Rail 310 - 3 kWh Meters in a single DIN-Rail Mounting. Easy to install and convenient to use.
These meters have been designed to measure accurately irrespective of the type of load - ideal for modern electronically controlled loads.
Models available (230V standard - 110V available upon request):
- Rail 310 - 3 x Pulses, 5 Amp CT input, 230V Auxiliary (R31/5A/230)
- Rail 310 - 3 x Pulses & Modbus, 5 Amp CT input, 230V Auxiliary (R31MOD/5A/230)
- Rail 310 - 3 x Pulses, 1 Amp CT input, 230V Auxiliary (R31/1A/230)
- Rail 310 - 3 x Pulses & Modbus, 1 Amp CT input, 230V Auxiliary (R31MOD/1A/230)
- Rail 310 - 3 x Pulses, 0.333V CT input, 230V Auxiliary (R31/V/230)
- Rail 310 - 3 x Pulses & Modbus 0.333V CT input, 230V Auxiliary (R31MOD/V/230)
Parameters measured - As standard:
- Volts, L-N (1, 2 and 3)
- Amps (1, 2 and 3)
- kW (1, 2, 3 and Σ)
- kWh (1, 2 and 3)
- Harmonics: Up to 30th Harmonic at 50Hz
Parameters measured - Additionally available via Modbus:
- PF (1, 2, 3 and Σ)
- kVAr (1,2, 3 and Σ)
- Average Current Σ
- Average Volts Σ
- kW (1, 2, 3 and Σ)
- kWh (1, 2, 3 and Σ)
Product Specification
