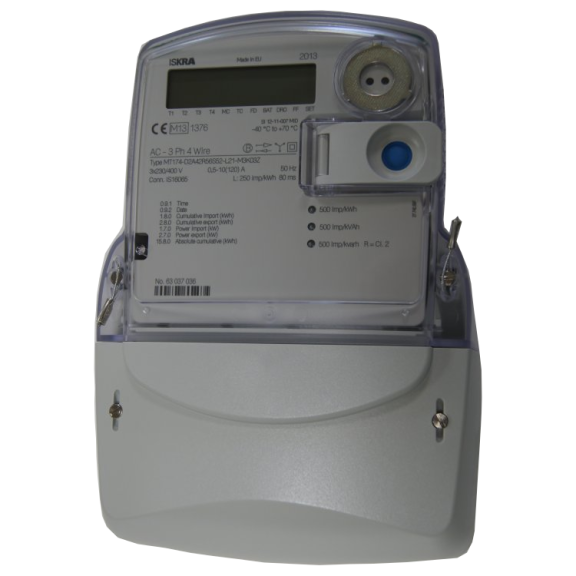

Iskra MT174 Three Phase MID Electricity Meter with Import/Export Series
- Economy 7 Tariff capabilities
- MID/OFGEM Approved
- Accuracy: Class 1%
- LCD 7 plus 1-digit display
- Max Demand Readings
- Import/Export Registers
- Three Phase/Single Phase operation (Polyphase)
- Optical interface
- Pulsed output
Product Details
The Iskra MT174 is an easy to install and cost effective MID approved kWh tariff meter.
Iskraemeco MT174 Models:
- MT174-CT - 5A Current Transformer connected
- MT174-DC - 85A/125A Direct Connected (Whole-Current)
Product Specification
- Voltage refrence: 3x230V, 3x230V, 3x400V and 230V
- Current: 85A or 125A (Direct Connected)
- Current: 5A (CT Connected)
- RS485 interface
- Dimensions: 177mm x 216mm x 155mm
- Accuracy: Class A or B EN 50470-3 (Active energy)
- Accuracy: Class 3 or 2 for apparant or reactive energy
- Tariff options: 4 (Economy 7)
- Four quadrant measuring
- Polyphase connection
- Two pulse outputs at Class A
- Up to 8 channels
