WAGO COP5 LV ENCLOSURE 3PH 4WIRE - NEUTRAL (50078315)

Product Details

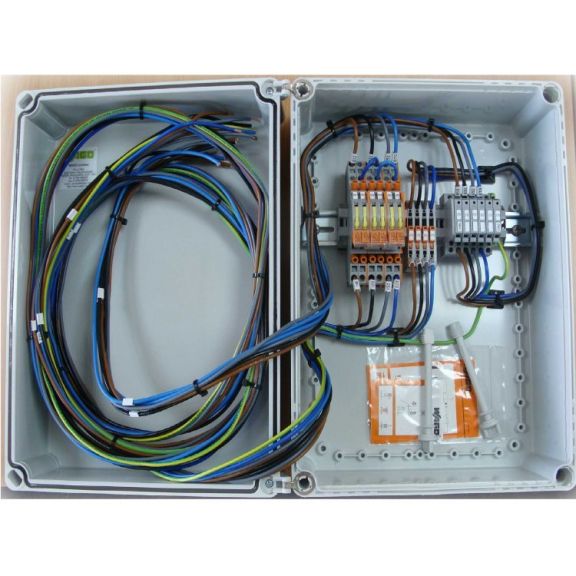

Camax can supply WAGO COP5 LV Enclosures ex-stock! The pre-wired 3-Phase 4 wire terminals are suitable for a variety of different meters (Popular choices being Elster A1700 or MT375).

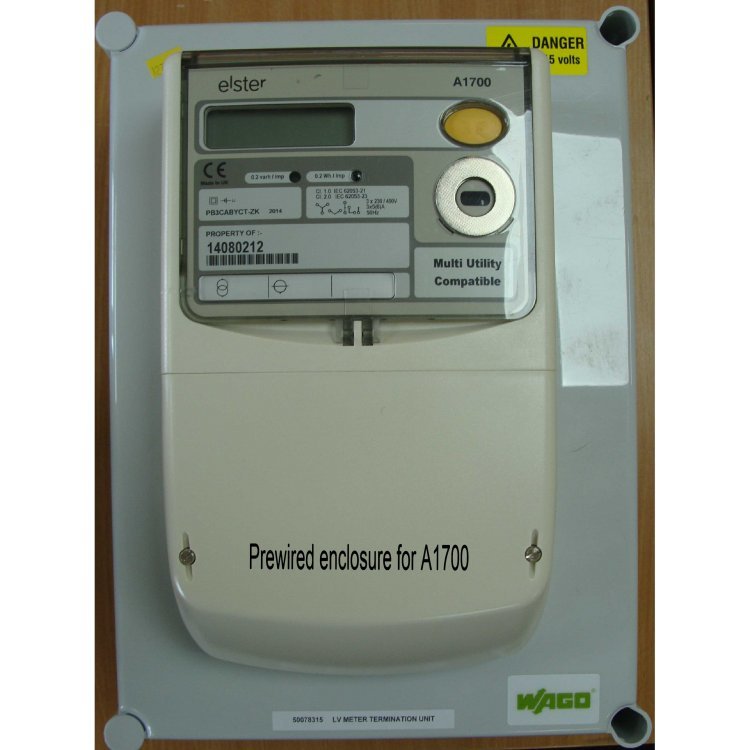

Surface Mount meters (as seen in the photo above) are fitted to the front of the unit, and the wires are fed through the front of the enclosure.

Product Specification

Voltage: 415V (Potential Difference)

Dimensions: Height: 35cm, Width=25.5cm Wide and 10cm Depth

Wiring: 3Phase 4 Wire - Neutral (Labelled and comparable to the drawing available in the 'downloads' section below)

Safety: Fuse links included along with plastic cover switches to test Voltage supply. Possible to short-circuit through the Voltage and Phase terminals simply.

Product Downloads

• COP5 Datasheet (1.32MB)
• Wago LV COP5 Schematics (0.27MB)
