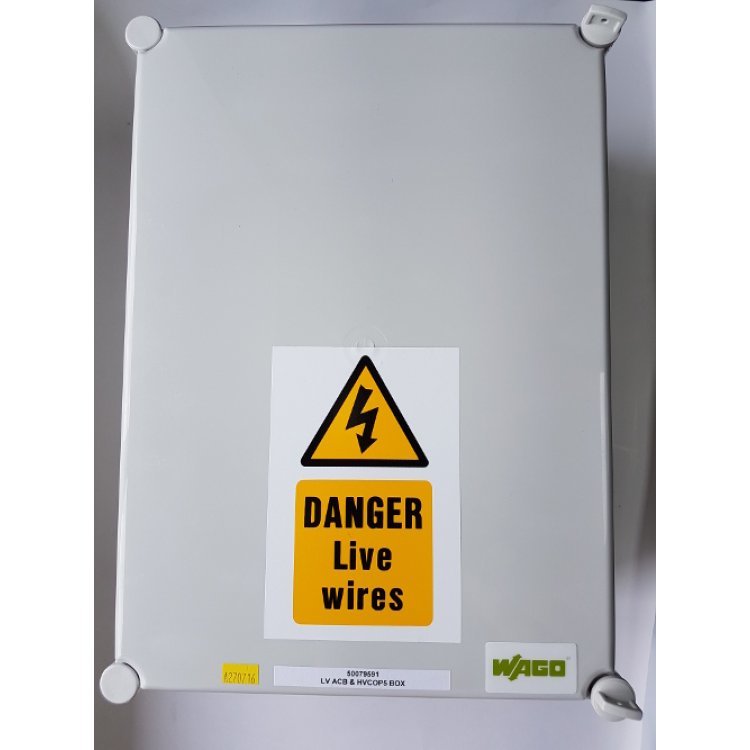

WAGO COP3 HV/LV ENCLOSURE 3PH 3 WIRE - NO NEUTRAL (50079591)
COP3 Conformity; No Neutral Connection, 3-CT Connections
- Dimensions: Height= 35cm, Width=25.5cm and Depth=10cm
- Voltage input: 415 Volts (L-L)
- Equipped with fuse and shorting links
Product Details
Wago's new COP3 LV/HV Unit is now available ex-stock at Camax UK.
- Dimensions: Height= 35cm, Width=25.5cm and Depth=10cm
- Voltage input: 415 Volts (L-L)
- Equipped with fuse and shorting links
Product Specification
Voltage: 400V (Potential Difference)
Unit Dimensions: Height: 35cm, Width=25.5cm Wide and 10cm Depth
Cable Dimensions: Voltage cables (2M), CT cables (1M)

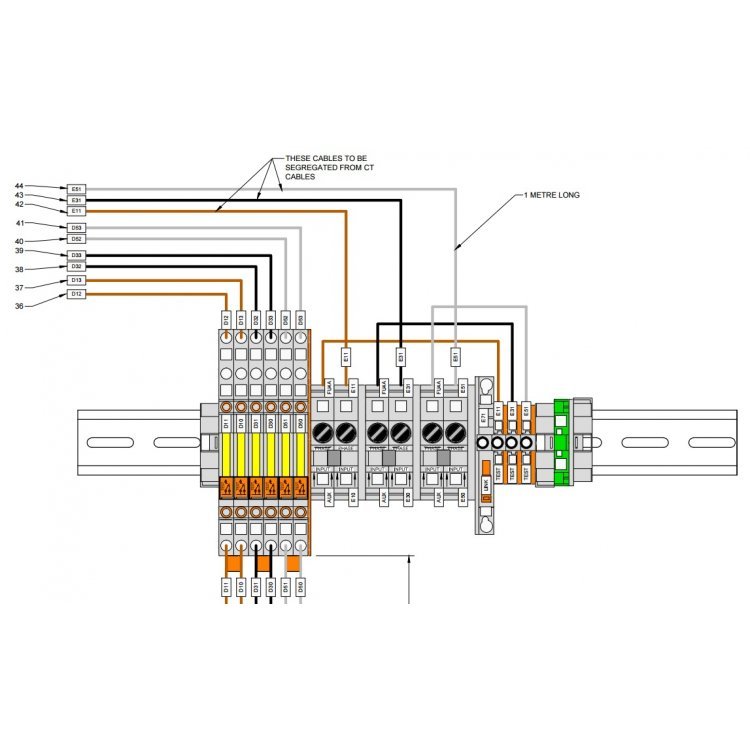

Wiring: 3 Phase 3 Wire (Labelled and comparable to the drawing available in the 'downloads' section below)

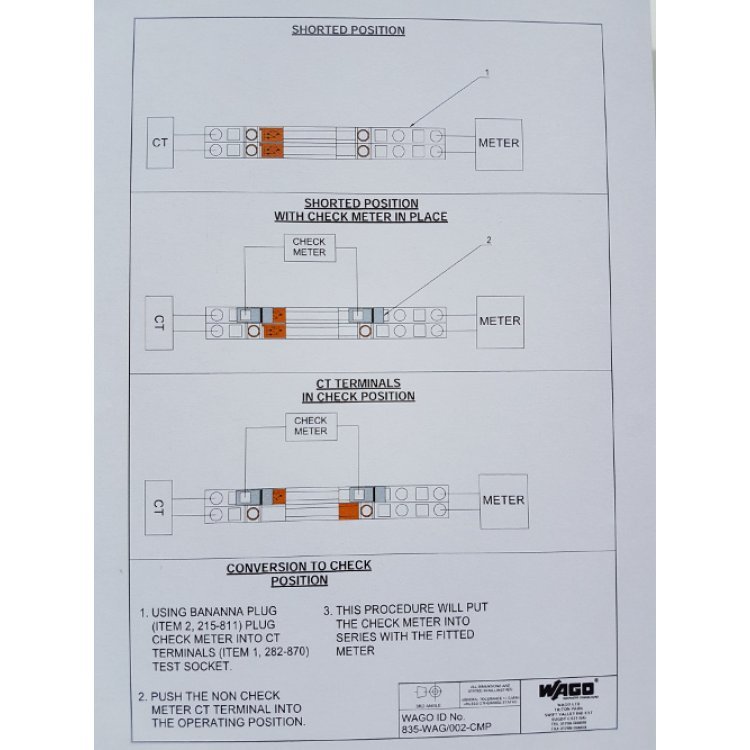

Safety: Fuse links included along with plastic cover switches to test Voltage supply. Possible to short-circuit through the Voltage and Phase terminals simply.
