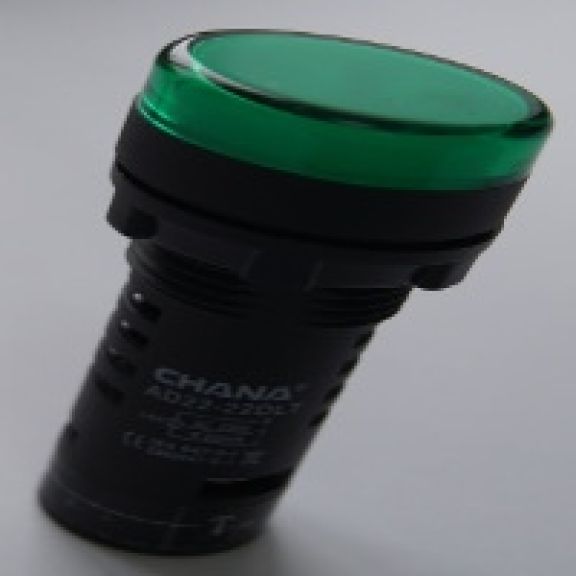

Test LED lamp panel indicator (22mm)

Product Details

Camax are now supplying 22mm indicator lamps used in electrical circuits for a variety of voltages. They are primarily used for indication and alarm signals and conform to IEC60947-5-1.

The AD56LT utilize a cluster of LED’s for long life and very low energy consumption and have lamp test facility.

Product Specification

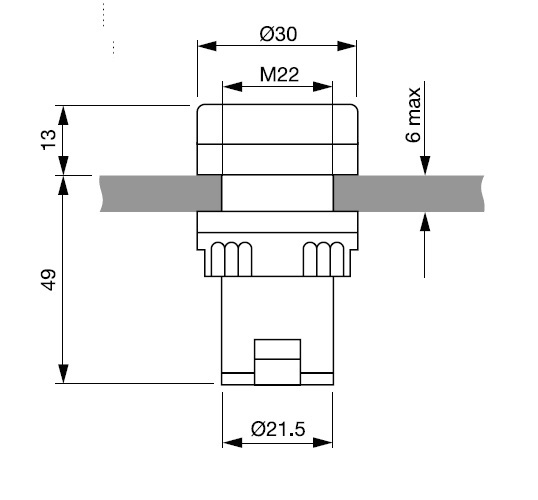

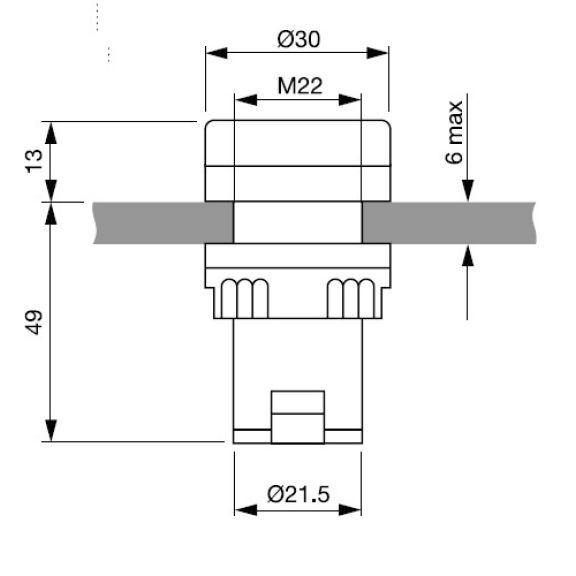

• Dimensions: Height: 62mm, Width: 30mm or ᶲ 21.5mm to ᶲ30mm
• Operating Temperature: -5 +40°
• Operating Humidity: 45 - 85% RH
• Pollution Degree: 3
• Installation Degree: III
• Degree of Protection: IP65
• Rated Operating Current: ≤ 80mA
• Electrical Life: ≥30000 hours
• Brightness: ≥60

Product Downloads

• CHANA Panel Lamps Datasheet (0.21MB)
