Standard Pre-wired panel for meters of either 72x72mm or 96x96mm

Product Details

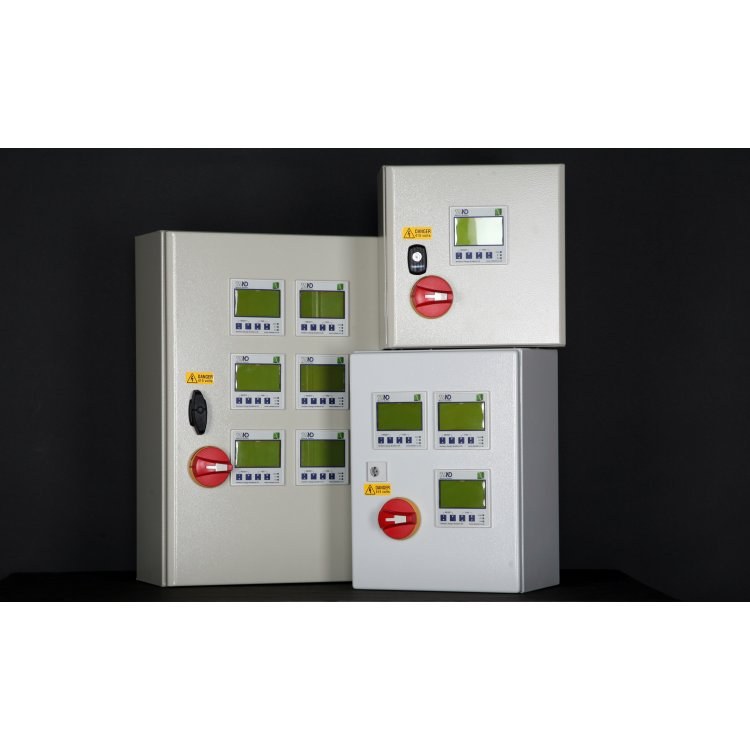

Camax supply Bespoke Panels in either metal or plastic for any amount of meters you require. The panels provide easy installation for the user with: 3 pole input wiring (CT terminals & Voltage terminals), supply MCB, Fused terminal block (1A) and a conduit knock-out for meter housing.

The enclosures are designed to minimise installation time required on site. All internal components are wired to easily accessible terminals. All panels are pre-tested prior to despatch to ensure hassle free installation.

Additional options

• Pulse or Modbus wiring
• External power supplies
• Equipped with a Data logger/Pulse counter
• Panel isolators (Isolate circuit from front of the panel)

Product Specification

Includes (Standard)

• Pre-wiring (CT and Voltage inputs as standard)
• Fuse terminal block (Labelled for wiring into meter)
• Supply MCB (Miniture Circuit Breaker)
• CT Terminals and fuse links
• Punched hole window

Panel Dimensions (Height, Width and Depth)

• 1-WAY Panel : 300 x 200 x 120 mm
• 2-WAY Panel : 300 x 300 x 150 mm
• 3-WAY Panel : 400 x 300 x 150 mm
• 4-WAY Panel : 400 x 300 x 150 mm
• 5-WAY Panel : 600 x 400 x 200 mm
• 6-WAY Panel : 600 x 400 x 200 mm
• 7-WAY Panel : 600 x 600 x 200 mm
• 8-WAY Panel : 800 x 600 x 200 mm
• 9-WAY Panel : 800 x 600 x 200 mm
• 10-WAY Panel : 800 x 600 x 200 mm
• 11-WAY Panel : 800 x 800 x 250 mm
• 12-WAY Panel : 800 x 800 x 250 mm
• 13-WAY Panel : 800 x 800 x 250 mm
• 14-WAY Panel : 800 x 800 x 250 mm
• 15-WAY Panel : 800 x 800 x 250 mm
• 16-WAY Panel : 800 x 800 x 250 mm
