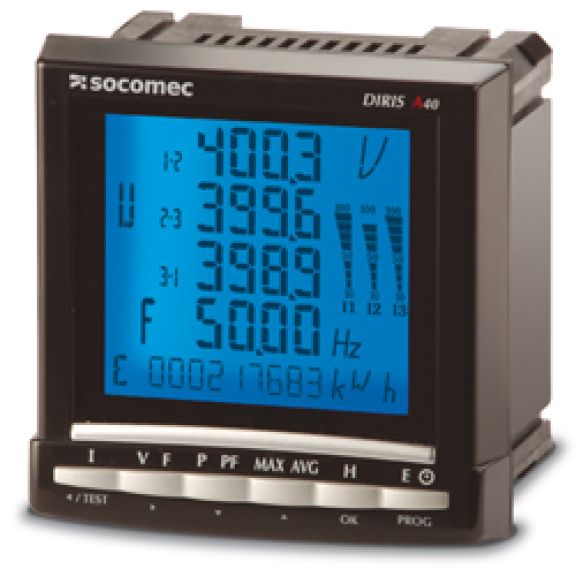

Socomec Diris A40 Multi-function 3 Phase Electricity meter DIN 96 (4825-0201)
- CT Ratio; Programmable up to 9999A
- DIN-96 Panel Mount
- High resolution LCD Screen
- Multi-function parameters
- Optional Modules available (Modbus and Pulse
Product Details
The Socomec Diris A40 is a 3-phase 5A CT-connected modular multi-function meter which is suitable for all industrial and commercial electrical installations.
The Diris A40 can measure the following parameters; kW, kVAR, kVA, Voltage, Current, Power Factor and Harmonics.
The parameters can be easily viewed from the meters large backlit LCD display.
Installation is easy with a compact DIN 96 panel-mount casing and plug-in terminal blocks.
Optional plug-in modules are available for: Pulse Outputs, Analog output, Ethernet and Modbus communications
Product Specification
Current
- CT Primary: 9.999 A (User-Programmable)
- CT Secondary: 1-5 A
- Measurement range: 1kA
- Accuracy: 0.2%
- Permanent Overload: 6A
- THD: Level 63 (Individual harmonics level 23)
Voltage
- Direct measurement between phases: 50-700VAC
- Direct measurement between phases and neutral: 28-404 VAC
- Freqency: 50/60Hz
- Permanent Overload: 800VAC
- THD: Level 63 (Individual harmonics level 23)
- Active (according to IEC 62053-22): Class 0.5 S
- Reactive (according to IEC62053-23): Class 2
- AC Voltage: 110-400VAC
- AC tollerance: 10+-10-%
- Panel Mount :96X96X60mm
