Socomec COUNTIS E10 63A Direct Connected Single Phase Energy Meter Series

Product Details

The COUNTIS E10 is an active electrical energy meter designed for single phase. It is used for direct connections up to 63A.

E10's are a totalising meter allowing a direct reading of the power consumed, using a pulse output. A partial meter with reset allows the energy to be metered over a specific period.

The Countis E10 series has three models:

• E10 Pulse (4850-3000)

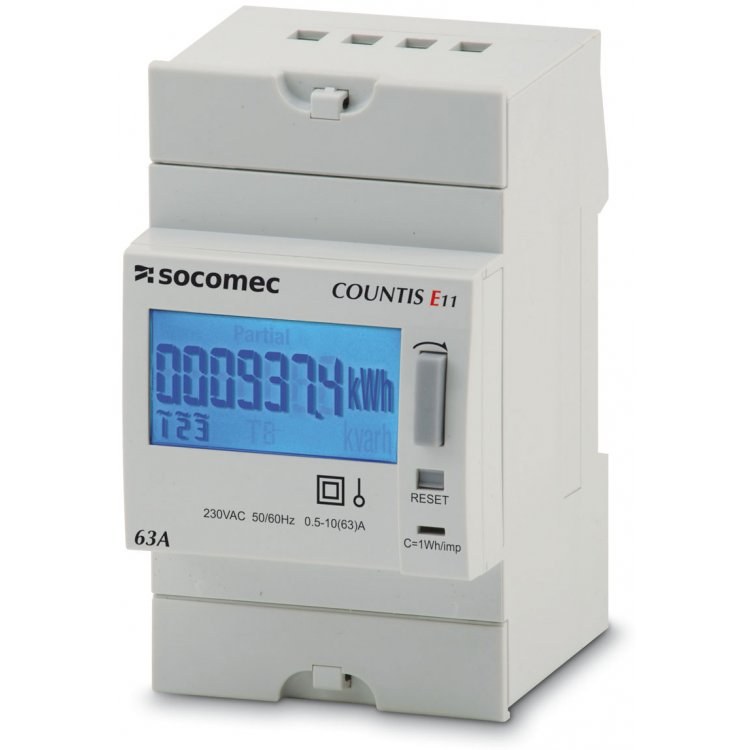

• E11 Pulse + Dual Tariff (4850-3001)
• E12 MID + Pulse + Dual Tariff (4850-3002)

Product Specification

Current measurement

• Type: 63 A
• Input consumption: 0.8 VA max.
• Overload: 30 x Imax
• Sustained overload: 63 A
• Minimum measured current: 40 mA

Voltage measurement

• Range of measurement: 230-400 V +/- 20%
• Consumption on inrush (VA): 0.5 VA max.
• Sustained overload: 280V

Energy accuracy

• Active (according to IEC 62053-21): Class 1 Input supply
• Self-supply: Yes
• Frequency: 50/60 Hz

Output (pulsed)

• Type: phototransistor IEC 62053-31 Class A
• Number: 1
• Fixed weight of impulses: 100 Wh
• Impulse duration: 100 ms
• Operating conditions:
• Operating temperature: -10 to 55°C °C
• Storage temperature: -20 to 70°C °C
• Relative humidity: 85 %

Case Type

• Number of modules: 3
• Dimensions: 54 x 90 x 62.5mm (W x H x D)
• Case protection rating IP: 20
• Front protection rating IP: 50

Display type

• Backlit LCD display
• Rigid cable connection section: 1.5-16 mm2
• Flexi cable connection section: 1-16mm2
• Weight: 170g

Product Downloads

• Socomec E10 Series Datasheet (0.55MB)
