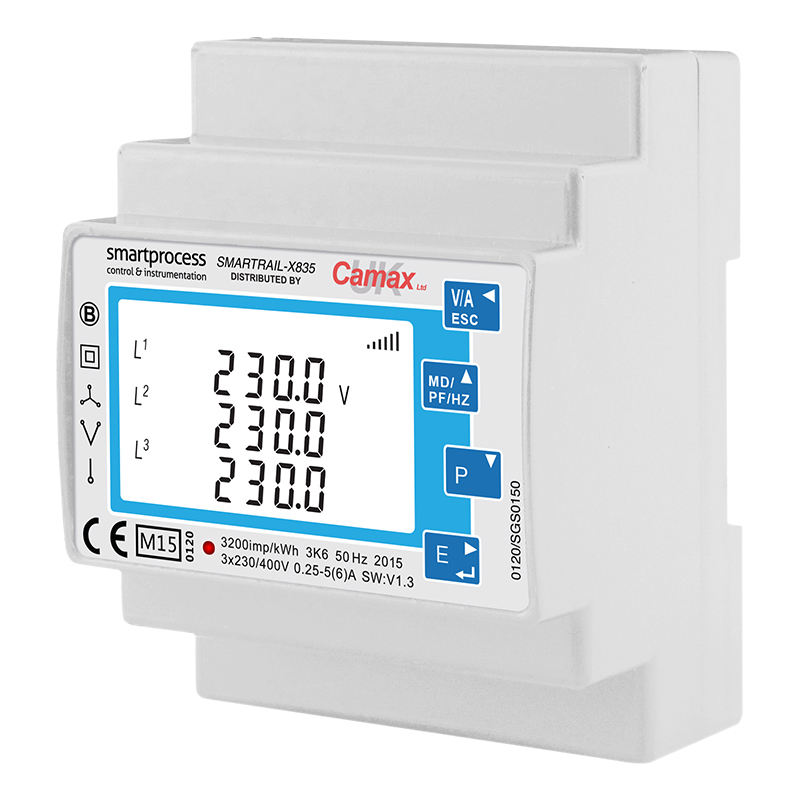

SMARTRAIL X835-MID Multi-function Power Meter – Pulse & Modbus Comms

MID B+D Certified

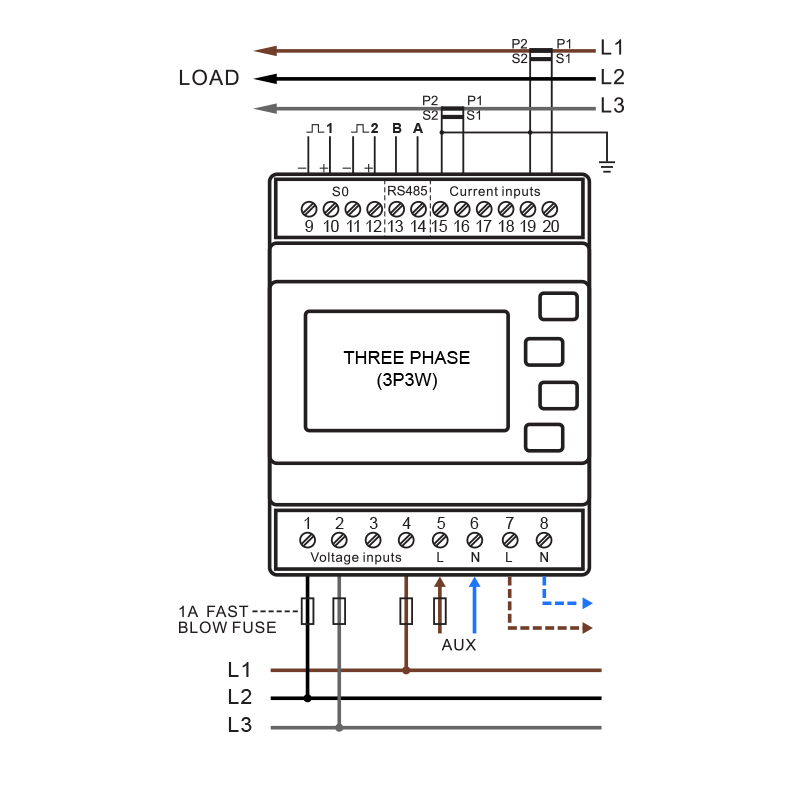

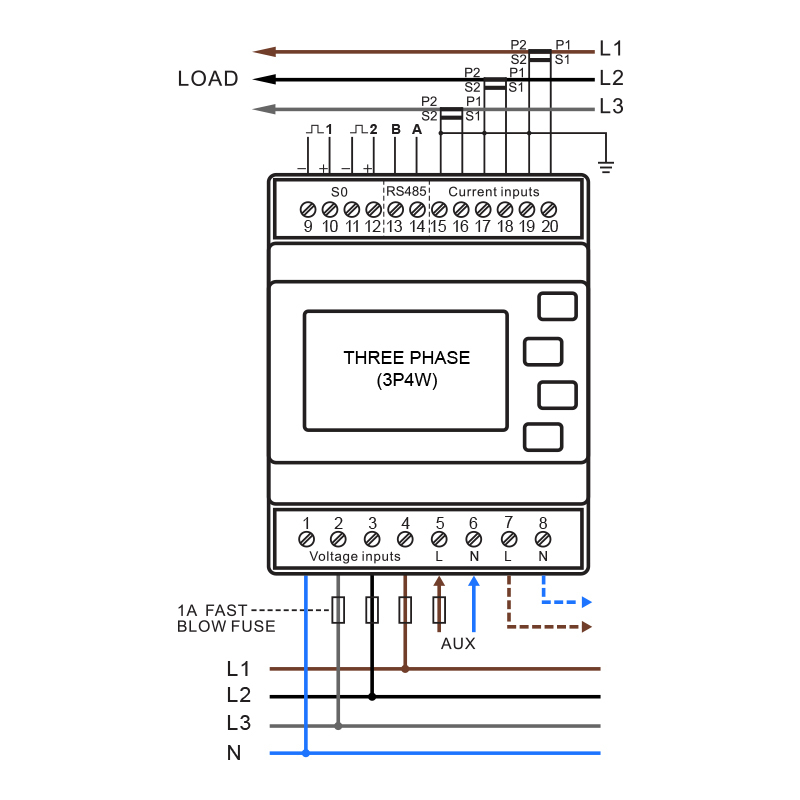

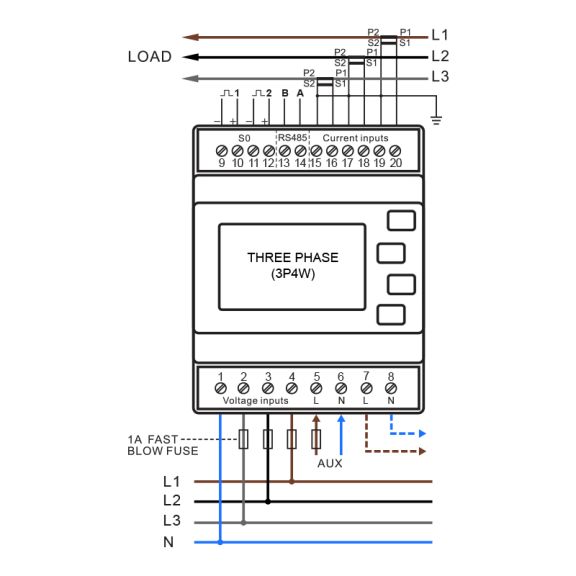

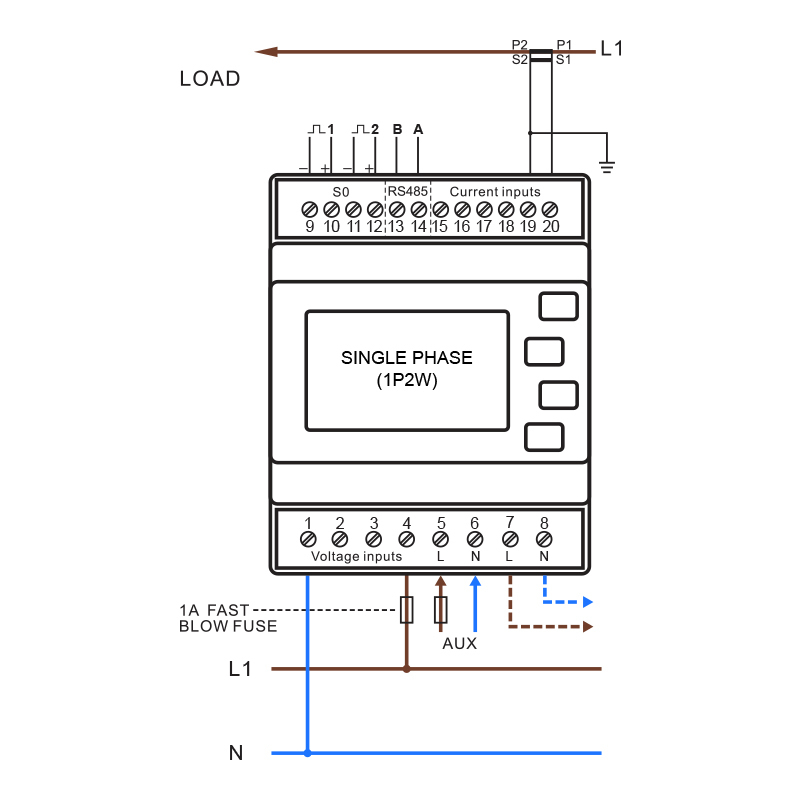

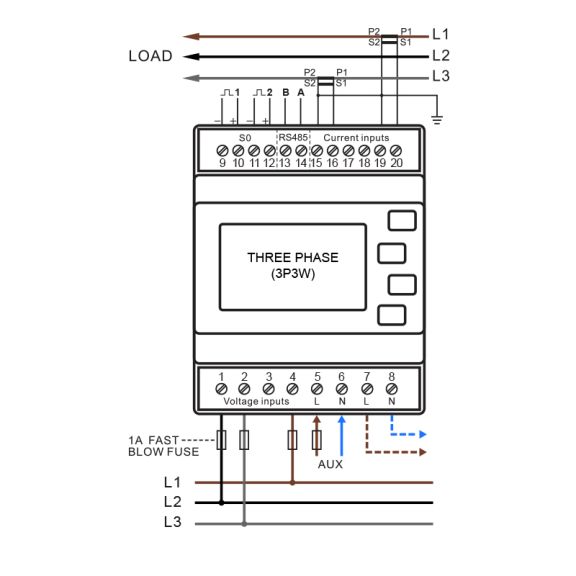

Certified for Single & Three phase networks
Certified for Import & Export Active energy (kWh)
DIN Rail Mounted (4-DIN Modules)
High Definition backlit display
5A or 1A input CT input
Pulsed output and built in RS485 (Modbus)
Class B (Active energy)

Enquire Now

Product Details

The SmartRail X835 Multi-function MID Power meter will measure and display all the fundamental Electrical parameters for a cost-effective price, making it the ideal choice for sub-billing and Energy management

Measured Parameters are: Current, Current (THD), Current Demand, Voltage, Voltage THD, Frequency Power, Maximum Power Demand, Power Factor, Active and Reactive Energy Imported and Exported (kW/kVAr)

Product Specification

Input:

Nominal Voltage Input (Ph+N) 100 to 289V (Ph+Ph) 173 to-500V
Max Continuous Voltage 120% of nominal
Nominal Input Current 0.25-5A(6)A AC rms
Max Continuous Current 120% of nominal
Nominal Input Current Burden 0.5VA
Frequency 45-65Hz

Auxiliary:

Operating range 87…275VAC ±10% / 120….380VDC ±20%

Accuracy:

Voltage 0.5% of full range
Current 0.5% of nominal
Frequency 0.2% of mid-frequency
Power Factor 1% of unity (0.01)
Active Power (W) ± 1% of range maximum
Re-active Power (VAr) ±2% of range maximum
Apparent Power (VA) ±1% of range maximum
Active Energy (kWh) Class B MID Directive 2004/22/EC
Reactive Energy (VARh) ±2% of range maximum
Total Harmonic Distortion (THD) 1% up to 31st Harmonic

Enclosure:

Style DIN Rail Mounted

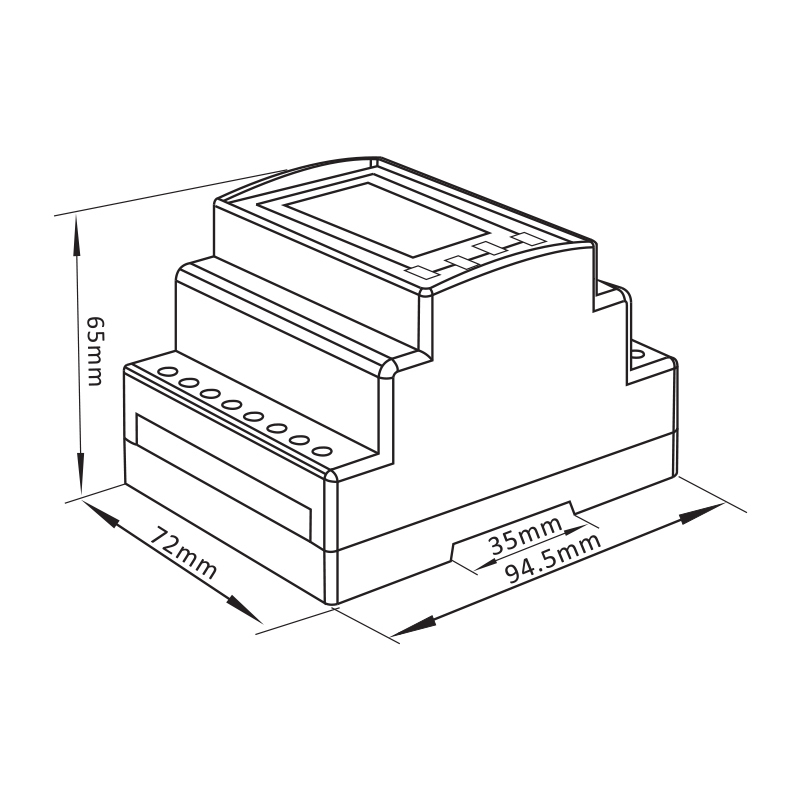

Dimensions 72mm Width, 100mm Height, 66mm Depth
Material Self-Extinguishing UL94 V-0
Sealing IP52

Output:

Pulse relay Output Can be set to represent kWh or KVArh (Active or Reactive Energy)

Rate 1 - Per Pulse
0.1 = 100Wh/VArh
1 = 1 kWh/kVArh
10 = 10 kWh/kVArh
100 = 100kWh/ kVArh
Pulse width 200/100/60ms
Relay rating 240VAC 50mA
RS485 Modbus RTU
Baud rate: 2400, 4800, 9600, 19200, 38400
Parity: none/odd/even
Stop bits: 1 or 2
Network address: 1 - 247
