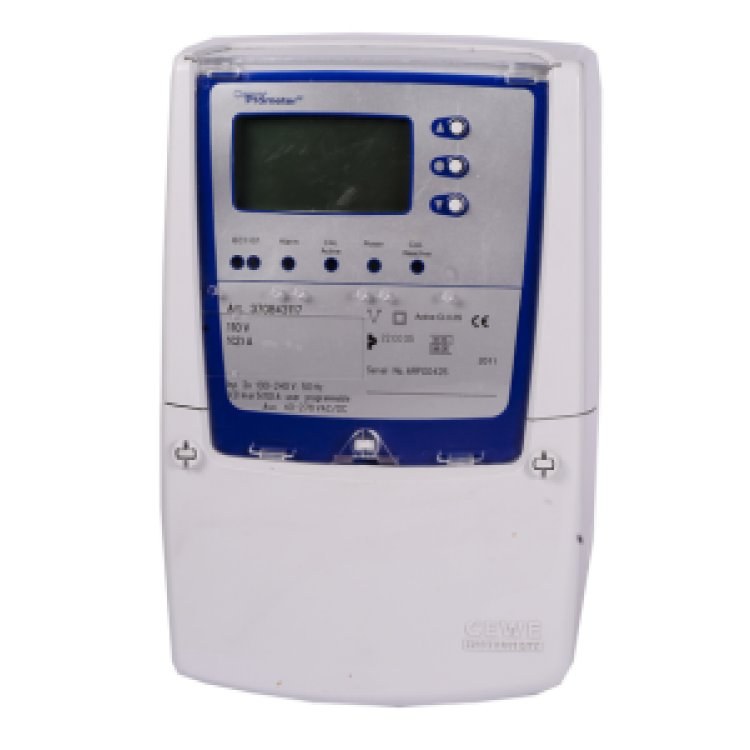

CEWE Wall Mounted MID 1A or 5A CT Connected Power quality Prometer (CW0376243016)
Secure Prometers are not a stock item.
The product includes: Class 0.2 Meter, Power Supply (24V DC) and CeweMod Modbus TCP/RTU Kit
- Housing: Wall-Mounted
- Accuracy Class: 0.2
- Current: 1 or 5A CT connected
- 8 Digital inputs and 4 Digital outputs
- Max demand
- THD up to 30th harmonic (V and I)
- Communication: RS232 or RS485 (Both, either or individually)
Product Details
The Secure Prometer is a Power Quality analyser with a wide range of features including: 4 Quadrant measuring, Max demand readings, Digital inputs and outputs, An internal real-time clock and many more.
Prometers also have the capability of measuring energy at 0.2 accuracy; ensuring highly accurate readings for a variety of Instantaneous values: V, A, W, VAR, VA, frequency, power factor, THD voltage, THD current harmonics up to 30th.
Product Specification
- Voltage: 3-wire system: 3x48 - 138 V or 3x96 - 276 V
- Voltage: 4-wire system: 3x48/83 - 3x138/239 V or 3x96/166 - 3x276/478V
- Accuracy: 0.2
- Current: 1 or 5A Current Transformer connected
- Four Quadrant measuring (Import/Export)
- Large Data Storage
- Tariff options
- MID approval
- Max demand readings
- Ports: RS232 or RS485 (Both, either or individually)
- Ports: Port 1 ( Baud 300 - 19200 ) and Port 2 ( Baud 1200 - 19200 )
- Real-time clock
- MID Approved
- THD measurments (Total Harmonic Distortion)
- 8 Digital outputs (option of alarms)
- 4 Digital inputs
