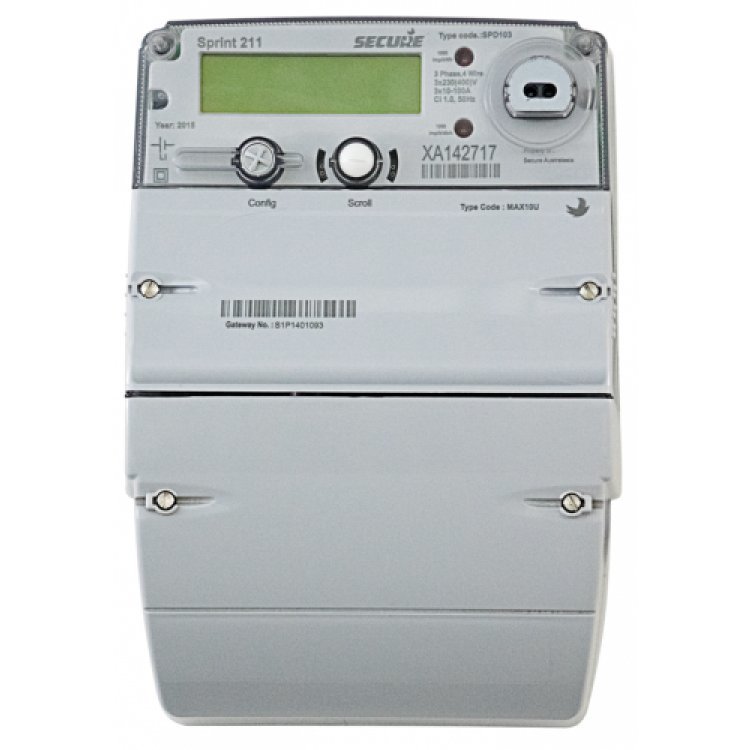

Secure Sprint 211 Smart Meter

Multi-operator (roaming) SIM support – ensures maximum network coverage
Peak and off-peak tariff management
Remote de-energisation and energisation (direct and arm)
Alerts to identify potential anomalies
QoS (Quality of Supply) monitoring
Hot swappable communications module
Supports WAN and HAN

Enquire Now

Product Details

The Sprint 211 is a three phase modular smart meter that provides communication flexibility to support modern cellular technologies. With Credit and Pay As You Go modes of operation available, the meter offers reliable data transfers that are best suited for advanced metering infrastructures, and three-phase co-generation metering applications. The unit allows for firmware upgrades that can be installed in the field or remotely.

Product Specification

Electrical:

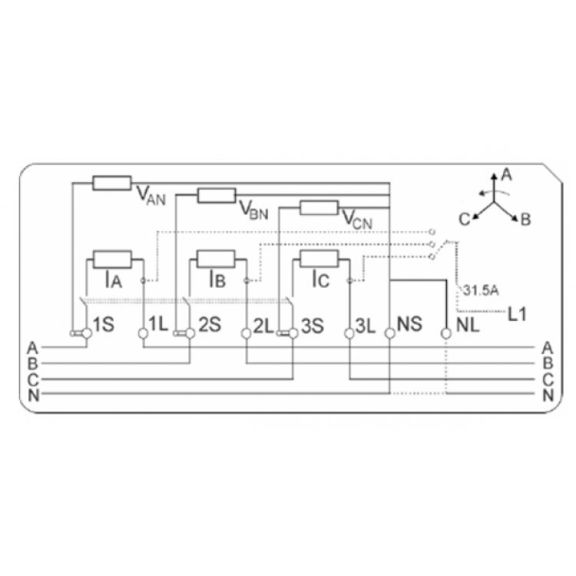

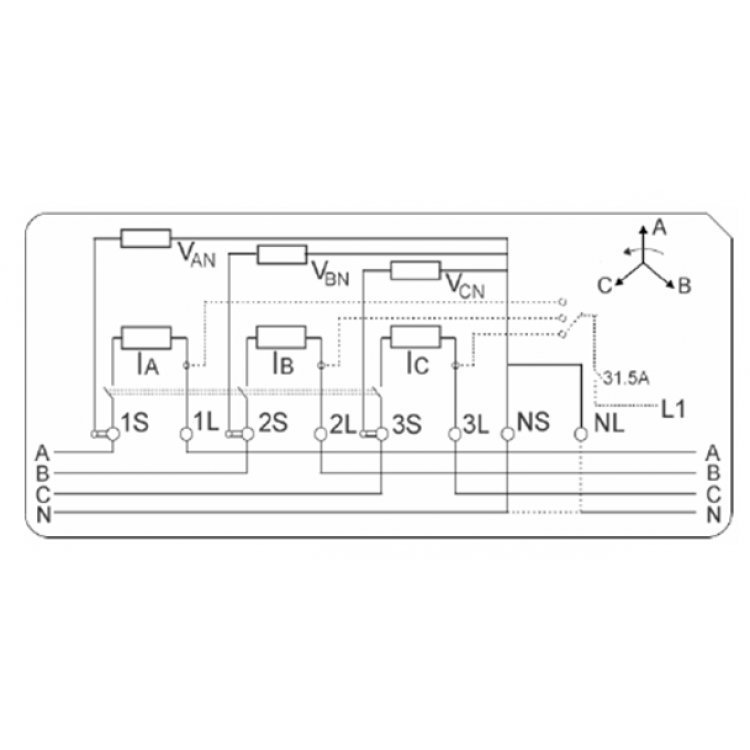

Connection type: 3-phase, 4-wire, active neutral, direct connected
Rated voltage (Vnom): 230 V AC, -20% to +15%
Maximum voltage: 300 V (L-N) continuous
Impulse withstand: 12 kV, 9 J, as per NMI M6
Frequency: 50 Hz ±5%
Current range: 10 A Ib, 100 A Imax
Accuracy: Class 1.0 (Active Energy), Class 2.0 (Reactive Energy)
Metrology Lamp: Two configurable metrological LEDs for active and reactive energy

Compliance:

Standards: AS 62052.11, AS 62052.21, AS 62053.21, AS 62053.23, NMI-M6 Exceeds minimum services specification as per the National Electricity Amendment (expanding competition in metering and related services)
Data storage capacity:
Energy/demand load profile: 395 days (per channel) at 30-minute interval (configurable), up to 4 channels
Quality of Supply (QoS) parameters: 90 days (per parameter) at 30-minute interval (configurable), up to 22 parameters, including average voltage, current, phase angles, temperature

Switches:

Mains supply contactor: 100 A
Auxiliary load control: 31.5 A (build option)

Mechanical:

Dimensions: 180 mm x 252 mm x 118 mm (with 35 mm terminal block cover)
Enclosure: Flame-retardant polycarbonate
Sealing: Terminal cover, meter main cover, configuration button, communications module
Weight: 2.4 kg (approx.)

Communications:

Local: ANSI optical port (AS 62056.21)
Remote: 3G/4G WAN, build option for ZigBee® HAN, Multi-operator (roaming) SIM support, Hot-swappable field interchangeable module, sealable separately
Security: AES128 encryption, cover open detection
Outage notification: Last gasp power supply (build option)

Clock:
