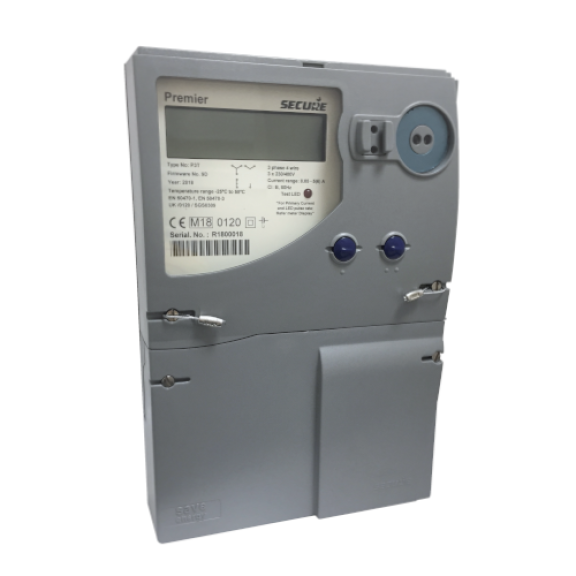

Secure Premier P3T Electricity Meter

  • 3 phase, 4 wire
  • 5 main energy registers
  • User configurable tariff definitions
  • Time of day and Maximum demand registers support
  • Load survey data storage and survey integration periods of 15, 30 or 60 minutes
  • Maximum demand integration periods of 5, 15, 30 or 60 minutes
  • Up to 4 user configurable pulse outputs
  • Up to 3 user configurable pulse inputs
  • Up to 19.2 kB baud RS232 modem port under the terminal cover
  • IEC1107 optical communication port
  • LCD display with parameter identification



Enquire Now

Product Details

Premier P3T is a CT operated, three-phase electricity meter that is ideal for industrial and commercial purposes. With full four quadrant metering, the unit supports Multi Tariff, Maximum Demand Recording, Data Storage, and advanced communication options that are best suited for use in HV, MV, and LV CT metering applications.

Product Specification

Electrical:

  • Type of circuit: 1p2w, 1p3w, 2p of 3p4w,3p3w,3p4w
  • Voltage Rating: 3x230/400V
  • Frequency: 50Hz
  • Active Accuracy Class: B(kWh)
  • Impulse Voltage Rating: 6kV
  • AC Voltage Rating: 4kV

Mechanical:

  • IP Rating: IP51
  • Dimensions (WxHxD): 176 X 250 X 77 mm
  • Degree of Protection: IP51
  • Flame Retardation: UL 94 V0
  • Weight (approx.): 1.6 kg +/- 0.2 kg
  • Insulation Protective Class: Class II

Current:

  • IN: 1A,5A
  • Imax: 1.2 A, 2A, 6A, 10A, 15A
  • Rating: 0.05-5(6)A
  • Range:0.05 - 5(6) A

Environmental:

  • Operating Temperature: -10°C to +45°C
  • Storage Temperature: -25°C to +70°C
  • Operating Humidity: Up to 95% non-condensing

Metrological:

  • IEC 62052-11, IEC 62053-21,22. Class 1.0s, 0.5s.
