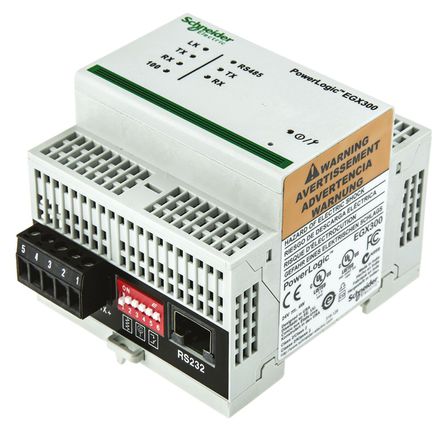

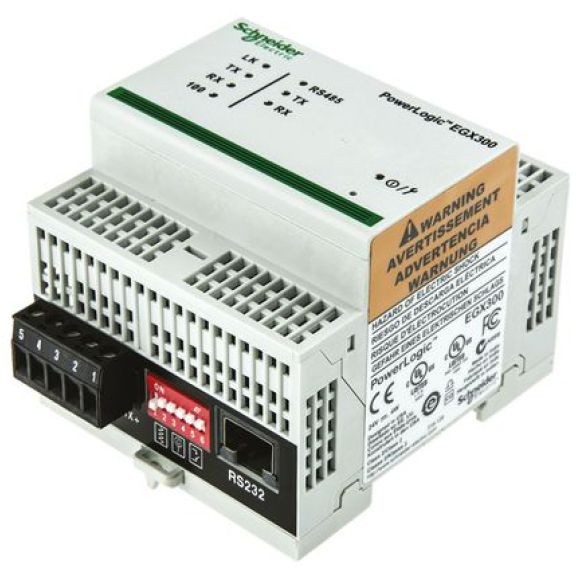

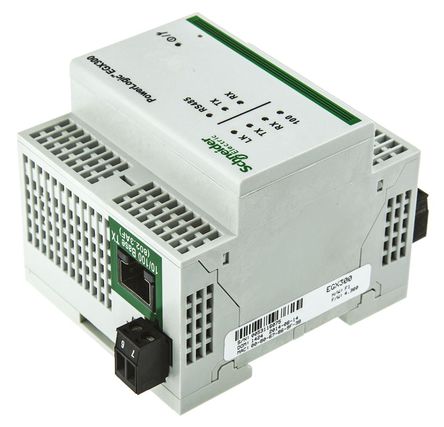

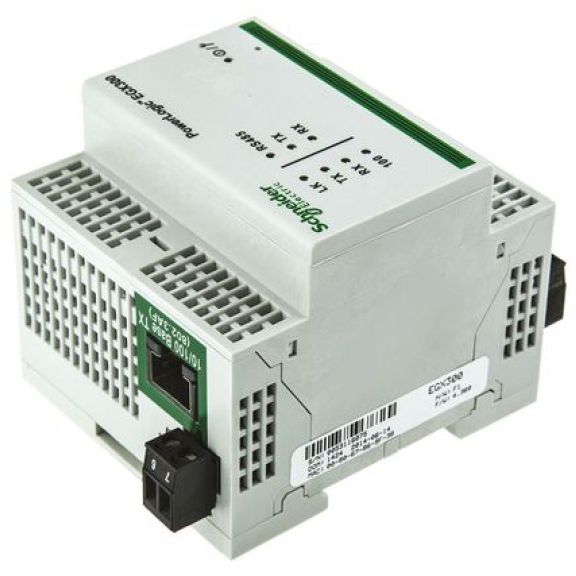

Schneider PowerLogic EGX300 Ethernet Gateway (EGX300MG)

Product Details

Camax are now supplying the PowerLogic EXGX300 Ethernet Gateway for either RS232 or RS485 at 2400 to 38400  Baud rate

• Monitor energy usage, reveal opportunities and verify results of efficiency improvements
• Remotely monitor real-time conditions and profile energy use on your power distribution system
•  Allocate energy costs to departments or processes
• Reduce peak demand surcharges
• Reduce power factor penalties
•  Identify billing discrepancies
• Leverage existing infrastructure capacity and avoid over-building
•  View real-time and historical information from multiple locations via any
• Microsoft-compatible web browser without any additional software
• Automatically detect networked devices for easy system setup
• View and log data from up to 64 devices across the network, even if they are connected to other gateway devices
• Automatically email or FTP selected logged data to your PC for additional analysis
• Select the logging intervals and periods you want logged
• Ensures data and system security through password protection and controlled network access to individual web pages
• Simplifies installation by receiving control power through the Ethernet cable utilising Power-over-Ethernet and offers the option to utilise 24 Vdc control power
• Provides serial support for Modbus RTU, Modbus ASCII, Jbus and PowerLogic protocols to support a wide range of devices
• ncludes one 10/100BaseTx Ethernet port
• Includes one serial port configurable for RS485 (2/4 wire) or RS232 (RJ45)
• Optically isolated serial port provides highly reliable communications in an industrial environment
• Compatible with all PowerLogic power monitoring software

Product Specification

• Dimensions: (H x W x D) 80.8 x 72 x 65.8 mm
• Memory: 256 MB memory for real-time data
• Maximum number of devices: 32 (Direct) and 64 (Indirectly)
• Types of ports: RS232 or RS485 (2-wire or 4-wire)
• Protocol: Modbus RTU/ASCII, JBus or Powerlogic Sy/Max
• Baud rate: 2400 to 38400 Baud (Configurable)
• Power-over-Ethernet: Class 3
• Power supply: 24 V DC if not using power over Ethernet
• Maximum burden: 4W
• Emissions: (radiated and conducted) EN 55022 / EN 55011/ FCC class A
• Standards: EN 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950
• Operating temperature: -13° F to +158° F / -25° C to +70° C

Product Downloads

• EGX Series Datasheet (0.46MB)
