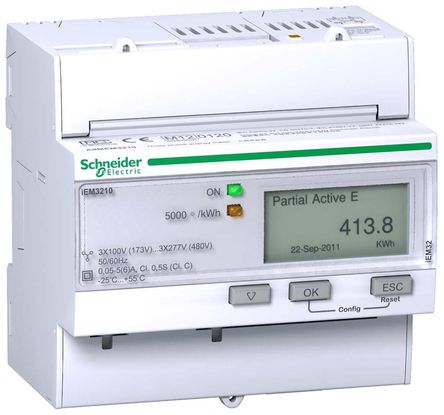

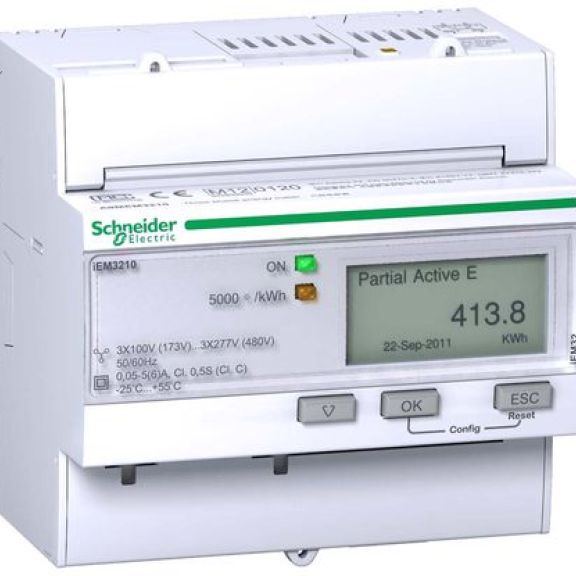

Schneider IEM3200 5A Current Transformer Connected Energy Meter Series

CT Ratio: user-programmable (1 or 5A CT Secondary)
Includes internal real-time clock
Dimensions: 5 DIN Module
Active Energy Accuracy: 0.5%

Enquire Now

Product Details

Camax are now supplying the IEM 3000 range which includes the IEM 3210 3-Phase 5A CT Connected DIN basic energy meter (kWh only readings).

The meter is 5A Current transformer connected with a 5 DIN module dimension (18mm per module), conforming to Class A: IEC-62053-12& IEC-61557-12 & Class B: EN50470 standards.

IEM3200 Models:

IEM320 kWh meter with partial counter (A9MEM3200)
iEM3210 kWh meter with partial counter and pulse output, MID certified (A9MEM3210)
iEM3215 multi-tariff meter controlled by digital input or internal clock, MID certified. (A9MEM3215)
iEM3235 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. M-Bus communication, digital I/O and MID certified(A9MEM3235)
iEM3250 kWh meter with partial counter and current, voltage, power measurement. Modbus communication (A9MEM3250)
iEM3255 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. Modbus communication, digital I/O, MID certified (A9MEM3255)
iEM3265 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. BACnet communication, digital I/O and MID certified (A9MEM3265)
iEM3275 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. LON communication, digital input and MID certified (A9MEM3275)

Product Specification

Power system inputs IEM3210 (Voltage)

Measured Voltage- Wye:100-277 V L-N, 173-480V V L-L 20% Delta: 173-480 V L-L 20%
Overload-332 V L-N or 575 V L-L
Voltage impedance- 3mW
Freqency- 50/60Hz +/-10%
Minimum wire temperature rating required- 90C (194F)
Maximimum device consumption- <1-VA
Wire-2.5mm2/14AWG
Wire strip length-8mm/0.31 in
Torque-0.5 Nm/4.4 in-lb

Current Inputs
