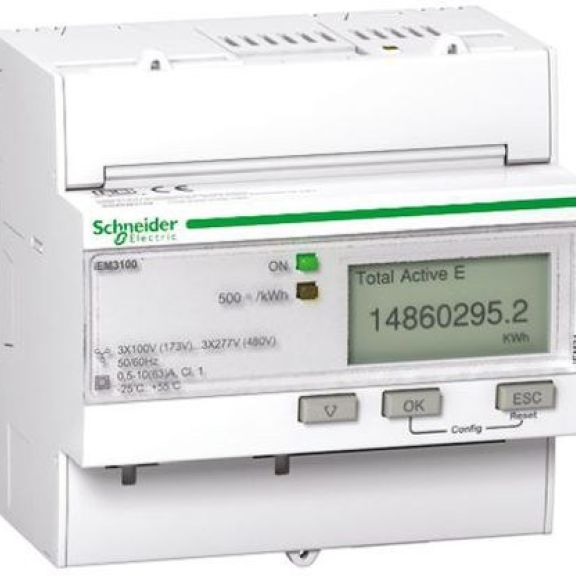

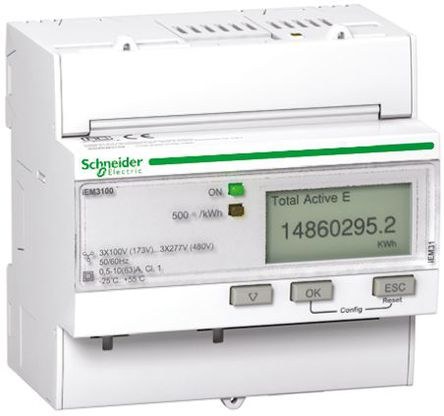

Schneider IEM3100 63A Direct Connected Energy Meter Series

Active Energy Accuracy: 1%
Dimensions: 5 DIN Module
Includes internal real-time clock
Inputs: 63A Direct Connection
Operating voltage: 3 x 100/173 VAC or 3 x 277/480 VAC

Enquire Now

Product Details

Camax supply the IEM 3000 range which includes the IEM3100 basic energy meter (kWh only readings).

The meter is 63A direct connect with a 5 DIN module dimension (18mm per module), conforming to Class A: IEC-62053-12& IEC-61557-12 & Class B: EN50470 standards.

IEM3100 Models:

iEM3100 kWh meter with partial counter
iEM3110 kWh meter with partial counter and pulse output, MID certified A9MEM3110)
iEM3115 multi-tariff meter controlled by digital input or internal clock, MID certified (A9MEM3115)
iEM3135 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. M-Bus communication, digital I/O and MID certified (A9MEM3135)
iEM3150 kWh meter with partial counter and current, voltage, power measurement. Modbus communication (A9MEM3150)
iEM3155 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. Modbus communication, digital I/O, MID certified (A9MEM3155)
iEM3165 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. BACnet communication, digital I/O and MID certified (A9MEM3165)
iEM3175 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. LON communication, digital input and MID certified (A9MEM3175)

Product Specification

Power system inputs IEM3100

Measured Voltage- Wye:100-277 V L-N, 173-480V V L-L 20% Delta: 173-480 V L-L 20%
Maximum current- 63A
Measured current-0.5A to 63A
Overload-332 V L-N or 575 V L-L
Voltage impedance- 0.3 mW
Current impedance-<0.3mW
Freqency- 50/60Hz +/-10%
Minimum wire temperature rating required- 90C (194F)
Burden- <VA at 63A
Wire-16mm2/6AWG
Wire strip length-11mm/0.43 in
Torque-1.8Nm/15.9 in-lb
