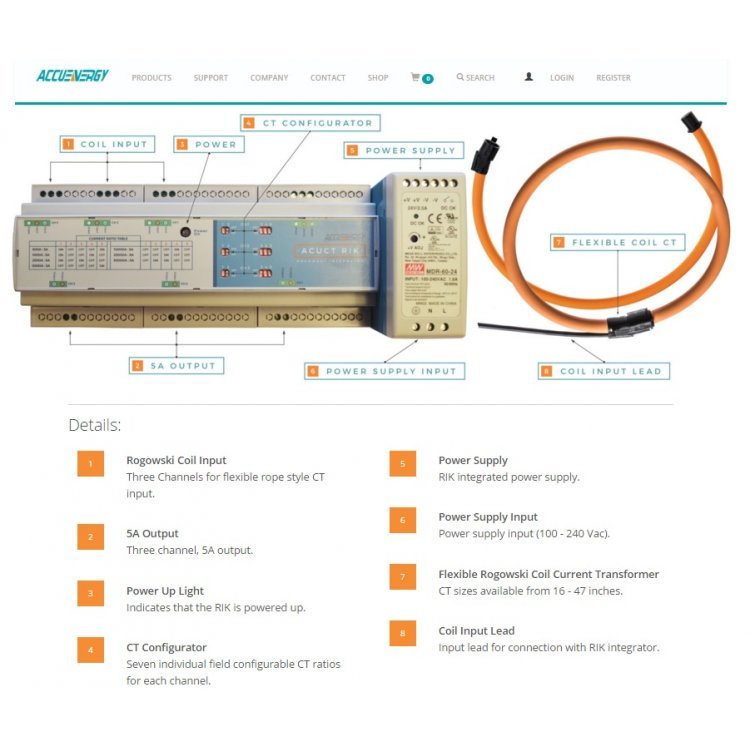

RIK16 5A Rogowski Integrator complete with Power supply (Set of three Coils)

This product includes: 3x Regowski Coils with Inputs from 2.5A-50,000A with 5A outputs (16") and 1x 24V DC Power Supply

  • Flexible rope-like current sensor, designed to easily fit into panels or busbars where space may be limited
  • 0-5A rated output that works with any power meter or equipment with 5A nominal current transformer input
  • Current sensing range from 2.5A to 50,000A to fit all systems
  • Seven field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
  • Individual CT ratios can be configured for each channel. Works in any single phase application with different current ratings
  • Works in both 50Hz and 60Hz systems
Enquire Now

Product Details

The Accuenergy Rogowski Integrator Kit (RIK) provides users with an easy-to-install, plugn-play solution to be used with any power meters or equipment with a 5A current transformer input. Meaning the RIK will allow for the installation of rogowski coil CTs in a variety of applications/configurations where spacial constraints may limit the use of other CT solutions.

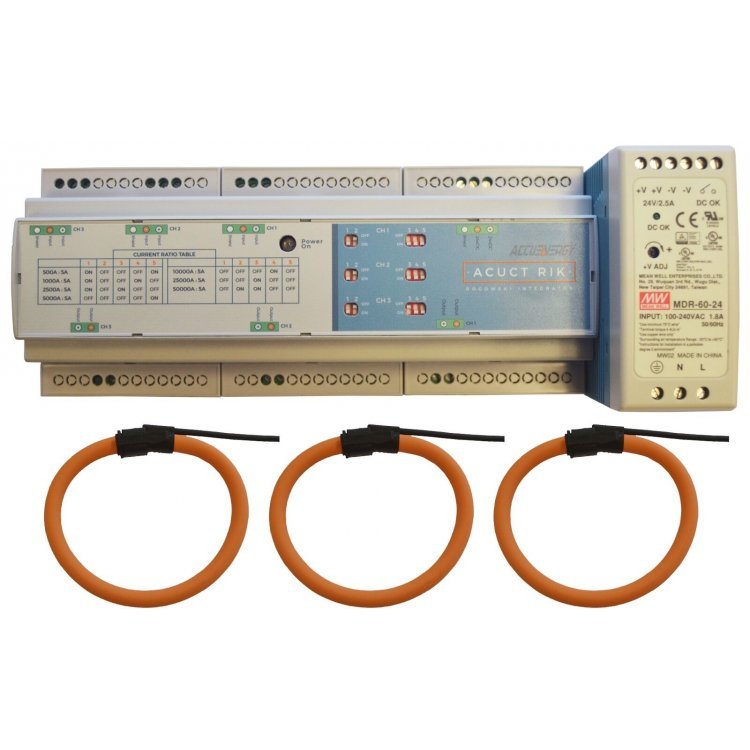

The RIK kit is designed around a three channel 5A output integrator and includes with it: three Accuenergy Rogowski coil current sensors, and one power supply. All of these parts are further configurable for the needs of many applications.

Product usage

The Accuenergy Rogowski Integrator Kit features a three channel 5A output integrator that allows for use with most power meters/equipment that feature a 5A input.

The RIK offers seven selectable ranges including: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA and 50kA, with a sensing range of 0.5% to 120% of rated current input.

The RIK can be used in both 50Hz and 60Hz systems with a rated frequency range of 45Hz to 65 Hz. The Integrator itself is DIN rail or surface mountable and features a 24Vdc power supply

Product Specification

Current MeasurementRange

2.5A - 60000A

Output Current

0 - 6A RMS (0 - 5A RMS Nominal)

Sensing Range

500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)

Maximum Burden

1.8VA/channel

Maximum Output Impedance

50mΩ

Measurement Channels

3 (three-phase or single-phase)

Frequency

45Hz to 65Hz

Accuracy

±1% Full Scale Error

Channel Cross Talk

< -60dB

Maximum Operating Temperature

55°C (131°F)

Rogowski CT Specifications

RIK16-5A

RIK24-5A

RIK36-5A

RIK47-5A

Window Diameter Size (in)

4.17

7.01

10.67

14.53

Window Diameter Size (mm)

106

178

271

369

Length (in)

15.75

23.62

35.43

47.24

Length (mm)

400

600

900

1200
