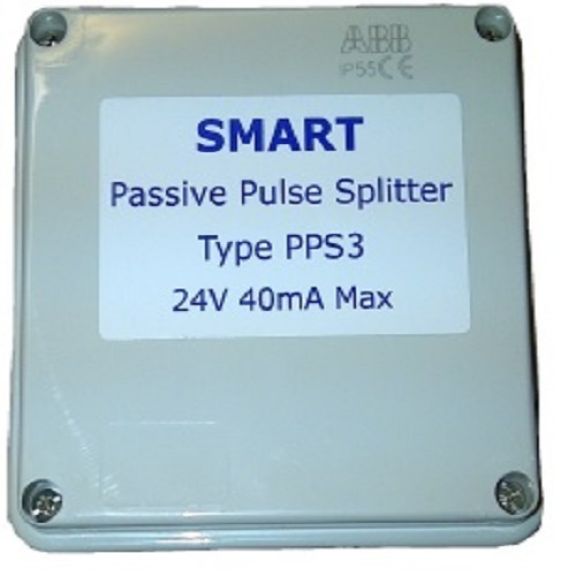

PPS3 24V Passive Pulse Splitter (1 Input 3 Outputs)
- Inputs: 1
- Outputs: 3
- Maximum working voltage: 24V DC
- Current: 40mA Maximum
- Signal voltage drop: 1.4V
- Input channel isolation: 75V max
- Connection - Screw terminals
Product Details
Camax's own PPS3 Pulse-Splitter allows users to split 1 Pulse input into 3 Pulse outputs.
- The PPS3 only requires 24V DC pulse input (Connections made via screw terminals)
- Pulse Current must not exceed 40mA (Maximum)
Product Specification
PPS3 Wiring Diagram
