Northern Design Multicube650mV Series
Product includes: 1 x Cube650mV Multicube meter, 1 x RJ12 to RJ12 CT adaptor, 3 x Current transformers (Split-core, Rogowski and Solid-core available)
- Operates with 2 x 3-phase supplies or 6 x single phase supplies
- Housing: 96x96mm panel-mount
- Accuracy: Class 0.5 as standard (Class 0.2 available)
- Total Parameters: Import/Export Active and Reactive Energy, kVA, Frequency,
- Individual Phase Parameters: Power (Watts), Power Factor, Current, L-L Voltage and L-N Voltage
- Features: 4 Pulse outputs (3 kWh and 1 alarm which are all user-configurable)
- Communications: Pulse output as standard (3), Modbus (100ms reading updates) or M-Bus on certain models
- CT input: RJ12 bespoke CT connections with 0.333V output ; VT user-programmable
- Warranty: 5-Year
- Standards: CE, CB, UL, CUL, CTick
Product Details

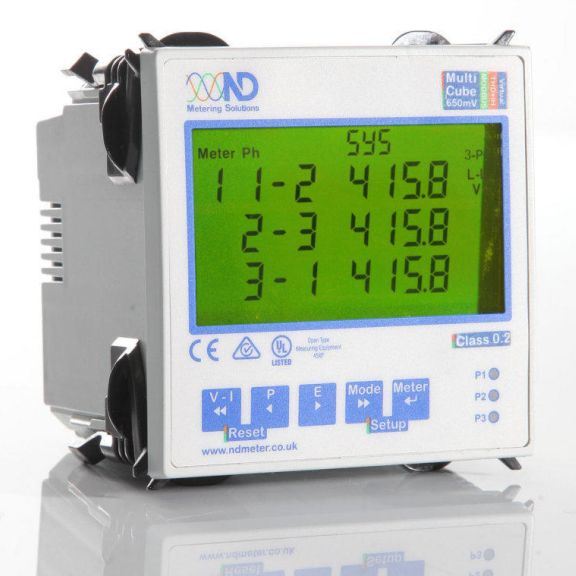

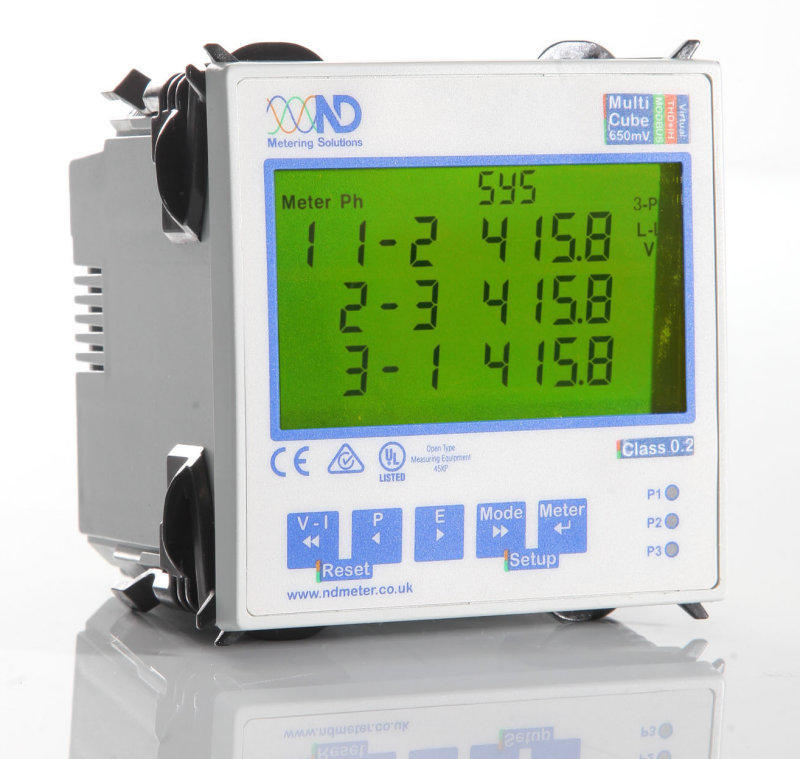

The ND Multicube 650mV is a cost-effective complete metering solution for either 2 x Three phase, 6 x Single phase circuits or a mixture of Three and Single Phase circuits together.
Installation of the bespoke CT's are safe-guarded by RJ12 connections which prevents any reversed CT inputs. If the user mistakenly connects the wrong CT's to the wrong phases, a warning symbol appears on the large LCD display so that costly returns to site can be avoided.
Cube650mV models - part numbers:
Multicube650mV with Pulse output (3), CL0.2 - MC65-mV-0.2
Multicube650mV with Pulse output (3), CL0.2, Harmonics + THD - MC65-mV-0.2-THD
Multicube650mV with Pulse output (3), Modbus - MC65-mV-MOD
Multicube650mV with Pulse output (3), Modbus, CL0.2 - MC65-mV-MOD-0.2
Multicube650mV with Pulse output (3), Modbus, CL0.2,Harmonics + THD - MC65-mV-MOD-0.2-THD
Multicube650mV with Pulse output (3), Modbus, Harmonics + THD - MC65-mV-MOD-THD
Multicube650mV with Pulse output (3), Modbus Plus - MC65mV MOD+
Multicube650mV with Pulse output (3), Modbus Plus, CL0.2 - MC65-mV-MOD+-0.2
Multicube650mV with Pulse output (3), Modbus Plus, CL0.2, Harmonics + THD - MC65-mV-MOD+-0.2-THD
Multicube650mV with Pulse output (3), Modbus Plus, Harmonics + THD - MC65-mV-MOD+-THD
Multicube650mV with Pulse output (3), M-Bus,UL - MC65-mV-MBUS
Multicube650mV with Pulse output (3), M-Bus, CL0.2, UL - MC65-mV-MBUS-0.2
Multicube650mV with Pulse output (3), M-Bus, CL0.2, Harmonics + THD - MC65-mV-MBUS-0.2-THD
Current Transformers for 650mV
3 x Split-core CT sets: 5A, 30A, 50A. 100A, 150A, 400A, 800A
3 x Rogowski/Rope CT sets: 1000A, 1500A, 2000A, 3000A (Power supplied separately)
Camax can offer the Cube650mV in a pre-wired enclosure complete with fusing for Voltage and CT inputs and to suit any Pulse, Modbus or M-Bus connections. See our range of be-spoke panel builds in related products below
Product Specification
| MEASURED PARAMETERS | ||||
| Active Energy (kWh) | Line Power Factor (PF) | |||
| Active Power (W) | Line Reactive Power (kVAr) | |||
| Apparent Energy (kVAh) | Line to Line Voltage (V) | |||
| Apparent Power (VA) | Line to Neutral Voltage (V) | |||
| Average Current (I) | Maximum Current (I) | |||
| Average Power Demands (W) | Maximum Power Demands (W) | |||
| Average Voltage (V) | Maximum Voltage (V) | |||
| Current (I) | Power Factor (PF) | |||
| Current in Neutral (I) | Reactive Energy (kVArh) | |||
| Frequency (Hz) | Reactive Power (VAr) | |||
| Line Active Power (W) |
| |||
| Line Apparent Power (kVA) | ||||
| Line Current (I) | ||||
