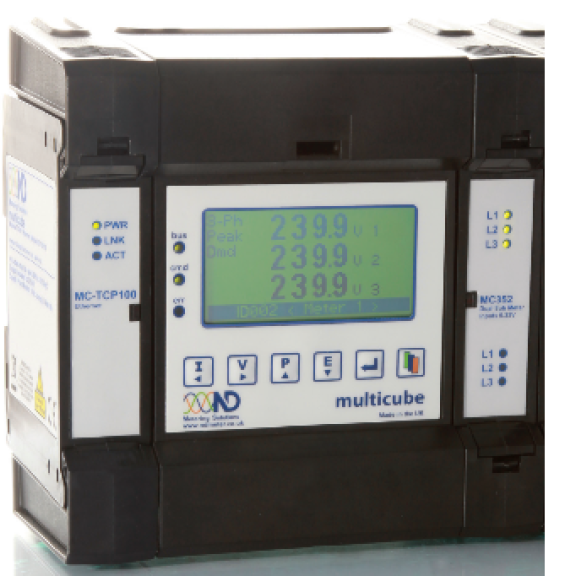

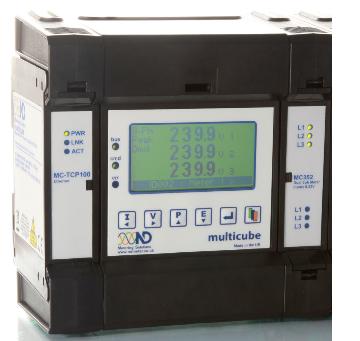

Northern Design Multicube Modular
- Modular Design; Remote Display
- Housing: DIN-Rail Mounted
- Current Inputs: 0.333V Externally Isolated bespoke current sensors
- Voltage Inputs: U90-480V L-L / 50-277V L-N
- Accuracy: Class 1 Metering Grade
- Auxiliary supply: 90-264Vac 50/60Hz at 15VA Max
- Warranty: 5 Year
- Communications: Modbus, Modbus TCP/P, M-Bus and Pulse output
- Permits up to: 20 Three Phase or 60 Single Phase metering points maximum (Combination of each is available)
- Ideal for real-time monitoring: Returns energies for ALL slaves, allowing fast response time
Product Details
The Northern Design Modular metering system is designed for applications where multiple meters are required on-site. It uses a Single voltage reference and bespoke voltage-output Current transducers that can be clipped round live conductors without producing hazardous voltages on the secondary (as is the case with conventional 5A Current Transformers).
Modules: Up to 10 additional Slave Modules available for the Multicube (Modbus RTU or TCP/IP, M-bus and Pulse output communications)
Parameters: kWh, kVARh, kW, kVA, kvar, V, A, PF & Hz with an accuracy better than Class 1. All parameters are available via the display or remotely via Modbus/TCP
Current Transducers (0.333V): Any 0.333V output Transducers

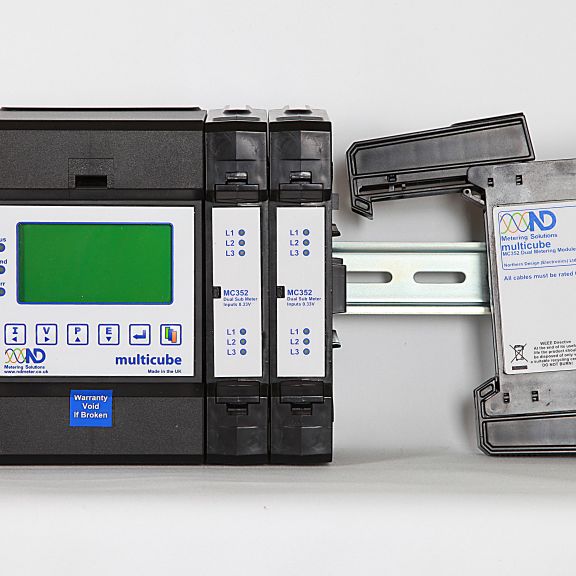

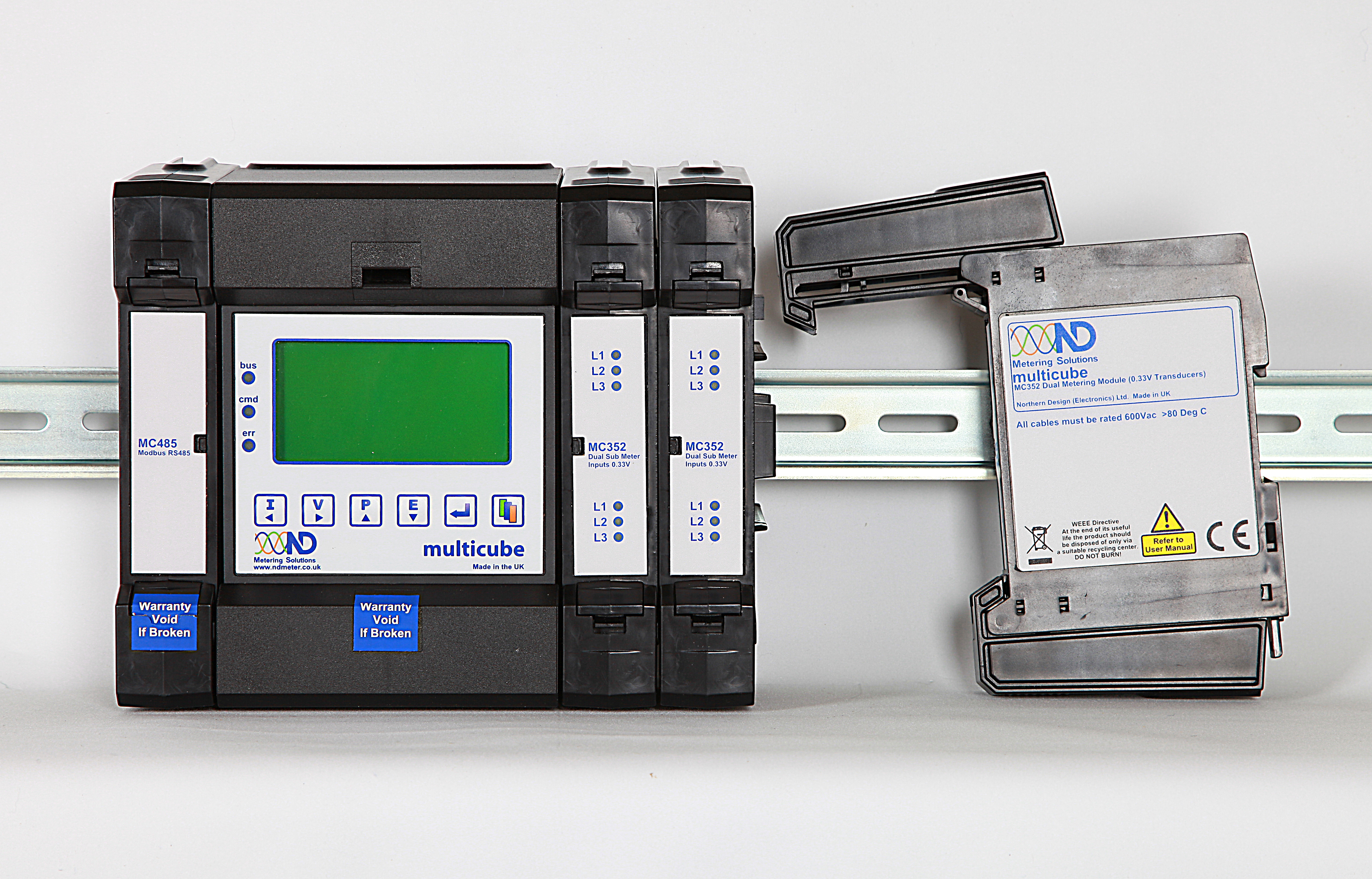

Installation: Left-hand side (Communications - Maximum 1 per Master) and Right-hand side (Slaves - Maximum 10 Per Master)
Product Specification
INPUTS
- System 3 Phase 3 or 4 Wire Unbalanced Load
- Voltage: U 90-480V L-L / 50-277V L-N
- Current I Nominal: 0.333V from Externally Isolated Custom Current Sensors
- Measurement Range Voltage: 40% to 120% of Nominal
- Current 0.2% to 120% Nominal CT Rating
- Frequency Range: Fundamental 45 to 65Hz
- Harmonics: Up to 30th harmonic at 50Hz
AUXILIARY SUPPLY
- 90-264Vac 50/60Hz at 15 VA max
ACCURACY
- kWh Class 1 per EN 62053-21 & BS 8431
- kvarh Class 2 per EN 62053-23 & BS 8431
- kW & kVA Class 0.25 IEC 60688
- kvar Class 0.5 IEC 60688
- Amps & Volts Class 0.1 IEC 60688
- PF ±0.2°
- Neutral Current Class 0.5 IEC 60688
GENERAL
- Temperature Operating: -10°C to +55°C
- Storage: -25°C to +70°C
- Humidity: <75% non-condensing
- Environment: IP54 standard
MECHANICAL
- Material Black ABS with fire protection to UL94-V-O. Self extinguishing
- Dimensions: Master Display Unit: 164x100x96mm (6.4”x3.9”x3.8”)
- Communication Module width: 29mm (1.1”)
- Dual Metering Slave width: 29 mm (1.1”)
- Weight Master: 500 gms (1.1lbs) MODBUS RTU ~ 175 gms (0.39lbs)
- Metering:150 gms (0.33lbs)
SAFETY
- Conforms to EN 61010-1:2001 Overvoltage Category III, Polution Degree 2 Accreditation UL, cUL, C-Tick, CB
