Northern Design Cube 400 Multifunction Meter (2 Pulse output as standard)
- Accuracy: Class 1
- Housing: 96 x 96 Panel Mount
- Dual Pulse output as standard
Product Details

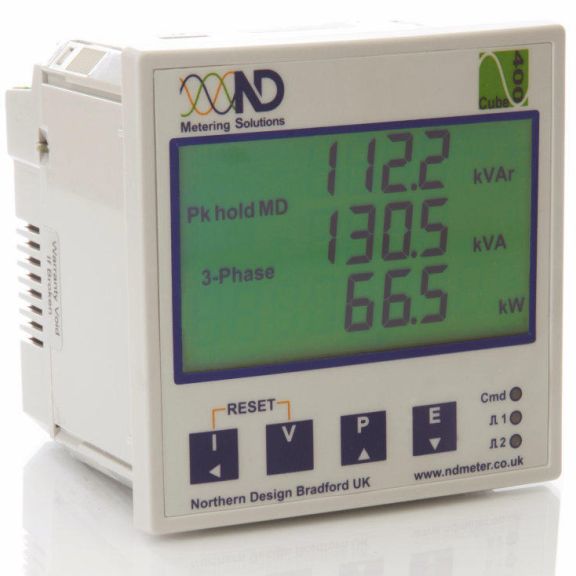

The ND Cube 400 is a cost effective 3 phase multi-function panel mount meter, which has dual-pulse outputs and accuracy better than class 1.
It also features 'Right First Time' installation aids (kW display,CT,VT and Pulse value displays) that clearly show if the meter had been wired and programmed correctly.
Parameters you can see on the display include: kWh, kVARh, kVAh, kW, kVAR, kVA, V, A, PF, Hz, peak values & demand values.
With all the features mentioned above it makes this meter perfect for control panels and switchboards, with an easy to read 3 line display and pulsed output this DIN 96 x 96 meter is an ideal choice.
ND Cube 400 has 4 models:
- Northern Design Cube 400 Multi-function meter
- Northern Design Cube 400 Multi-function meter with Modbus
- Northern Design Cube 400 Multi-function meter with Modbus and Harmonics
- Northern Design Cube 400 Multi-function IP System Meter with Harmonic Analysis, Pulse Output, Modbus/TCP-IP and Web interface
Product Specification

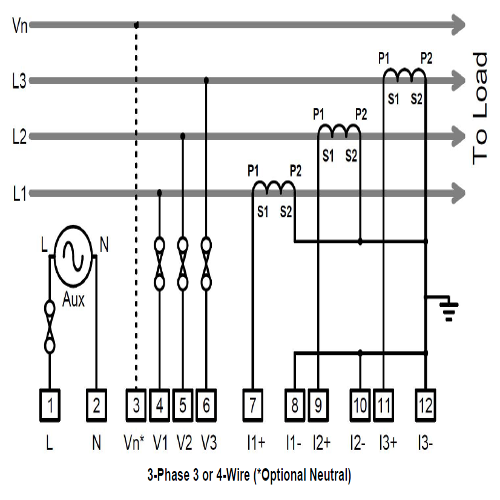

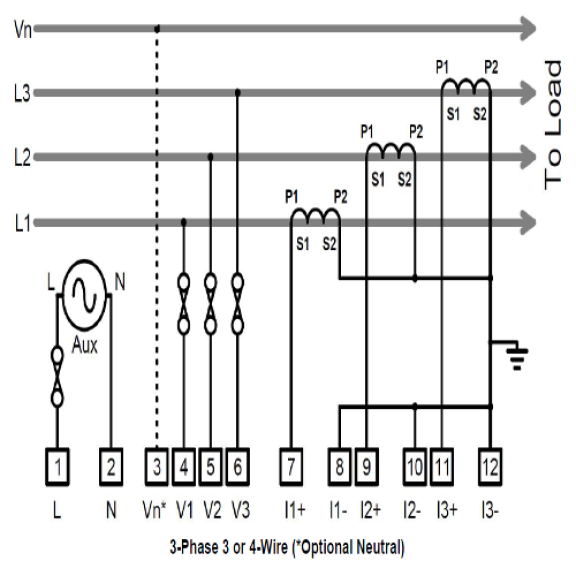

Inputs
- System- 3 Phase 3 or 4 Wire Unbalanced Load
- Voltage Un 400/230V. 3 Phase 3 or 4 Wire
- Current In- 5A from external CT's
- Voltage measurement- 50% to 120%
- Current range- 0.2% to 120%
- Fundamental – 45-65 Hz
- Harmonics- Up to 30th harmonic at 50Hz Individual to the 15th
- Burden Voltage -<0.1VA per phase
- Burden Voltage -<0.1VA per phase
- Overload Voltage –x4 for 1 hour
- Overload Current-x40 for 0.5 second max
Auxiliary Supply
- Standard- 230V
- Options- 110V
- Load- 2VA max
- Overload- 1.2 continuous
Accuracy
- kWh Class 1 per: EN 62053-21 & BS 8431
- ANSI C12.20: Class 0.5
- kvarh Class 2 per: EN 62053-23 & BS 8431
- kW & kVA Class 0.25: IEC 60688
- kvar Class 0.5: IEC 60688
- Amps & Volts Class 0.1: IEC 60688
Mechanical
- Enclosure- DIN 43700 96x96
- Dimensions- 96x96x83.5mm (72 behind panel)
- Protection: IP54
