Northern Design Cube 350V Multi-function meter

Product Details

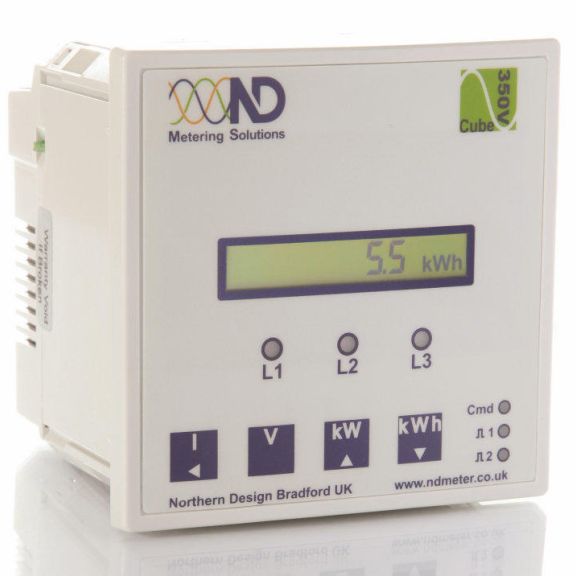

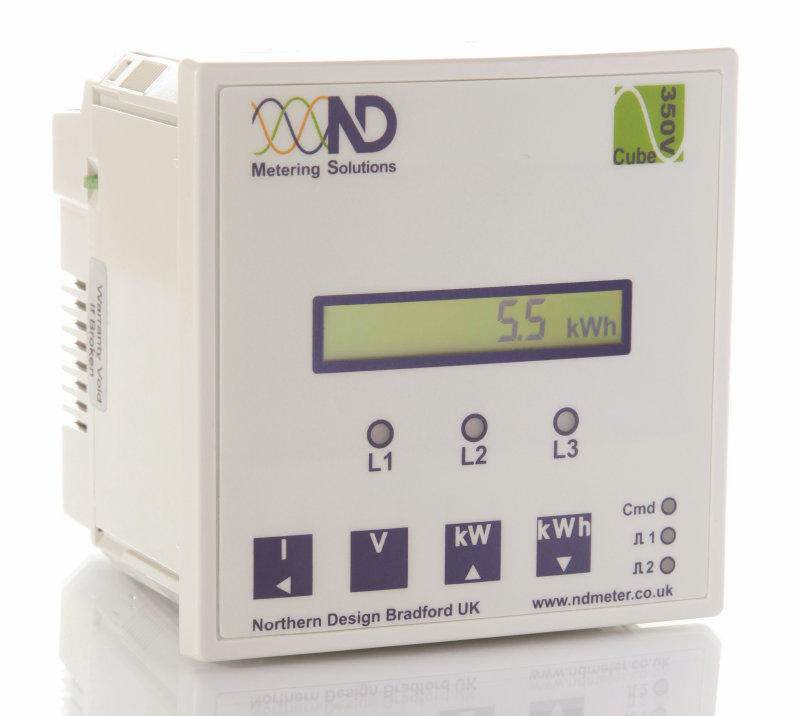

The ND Cube 350V is a cost effective multi-function panel mount meter, which has pulsed output and accuracy better than class 1.

It also features 'Right First Time' installation aids (kW display,CT,VT and Pulse value displays) that clearly show if the meter had been wired and programmed correctly.

Parameters you can see on the display include: kWh, kVARh, kW, V, A, PF & Hz.

With all the features mentioned above it makes this meter perfect for control panels and switchboards, with an easy to read display and pulsed output this DIN 96 x 96 meter is an ideal choice.

Cube 350V has 4 models:

• Northern Design Cube 350V Multi-function meter
• Northern Design Cube 350V Multi-function meter with Modbus
• Northern Design Cube 350V Multi-function meter with Modbus and Harmonics
• Northern Design Cube 350V IP system and multiple Pulse inputs and outputs

Product Specification

Inputs

• System: 3 Phase 3 or 4 Wire Unbalanced Load
• Voltage U: 480/277V, 110/63V & 208/120V (optional)
• Current I: 5 amp, 1 amp or 0.333V (Depending on model)
• Measurement Range Voltage: 20% to 120%
• Current: 0.2% to 120%
• Frequency Range Fundamental: 45 to 65Hz
• Harmonics: Up to 30th harmonic at 50Hz (Option), Individual up to the 15th (Option)
• Auxiliary Supply
• Standard: 230V 50/60Hz at 5W max
• Option: 110V 50/60Hz at 5W max

Accuracy

• kWh Class 1 per: EN 62053-21 & BS 8431
• ANSI C12.20: Class 0.5 kVArh Class 2 per: EN 62053-23 & BS 8431
• kW & kVA Class 0.25: IEC 60688
• kVAr Class 0.5: IEC 60688
• Amps & Volts Class 0.1: IEC 60688

Mechanical

• Enclosure: DIN 43700 96x96
• Dimensions: 96x96x83.5mm

Product Downloads

• Northern Design Cube 350V Operating manual (2.52MB)
• Cube 350V Leaflet (0.19MB)
• Cube350 Installation Guide (0.17MB)
