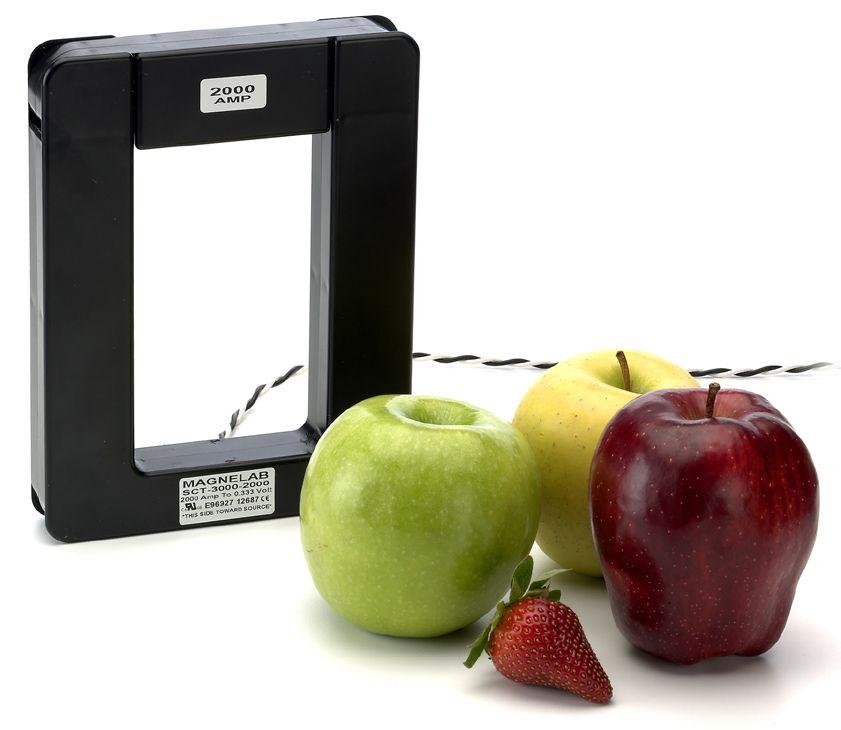

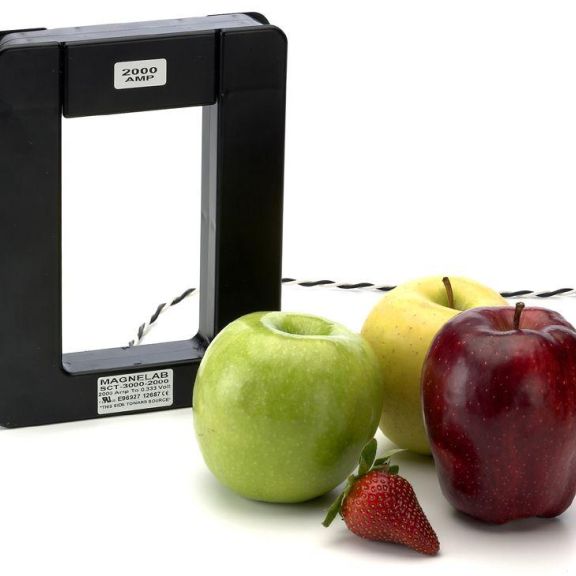

Magnelab Split-Core AC Current Sensor SCT-3000 (0.333V output)

Product Details

Magnelab's SCT-3000 Series split-core current sensors "sense" AC current up to 3000 Amps passing through the center conductor. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor.

The SCT series have a self-locking mechanism.

SCT-3000 models:

• SCT-3000-400(400A)
• SCT-3000-600(600A)
• SCT-3000-800(800A)
• SCT-3000-1000(1000A)
• SCT-3000-1200(1200A)
• SCT-3000-1500(1500A)
• SCT-3000-2000(2000A)
• SCT-3000-3000(3000A)

Product Specification

• Rated input up to 3000 Amp (Depending on model)
• Output of 0.333 Volt at rated current
• Linearity accuracy ± 1%
• Accuracy at 10% to 130% of rated current
• Phase angle < 2 degrees measured at 50% rated current
• Operates from 50 Hz to 400 Hz
• 8 ft. twisted-pair lead
• UL recognized, CE, and RoHS compl

Product Downloads

• Magnelab SCT-3000 Datasheet (1.1MB)
