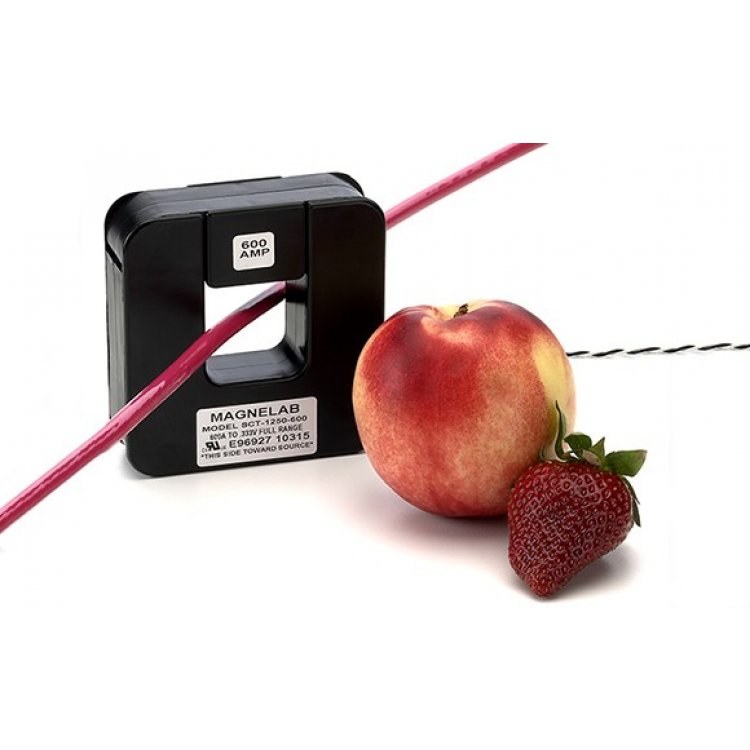

Magnelab Split-Core AC Current Sensor SCT-1250 (0.333V output)

Product Details

Magnelab's SCT-1250 Series split-core current sensors "sense" AC current up to 200 Amps passing through the center conductor. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor.

The SCT series have a self-locking mechanism.

SCT-1250 models:

• SCT-1250-070 (70A)
• SCT-1250-100 (100A)
• SCT-1250-150 (150A)
• SCT-1250-200 (200A)
• SCT-1250-250 (250A)
• SCT-1250-300 (300A)
• SCT-1250-400 (400A)
• SCT-1250-600 (600A)
• SCT-1250-800 (800A)

Product Specification

• Rated input up to 800 Amp
• Output of 0.333 Volt at rated current
• Linearity accuracy ± 1%
• Accuracy at 10% to 130% of rated current
• Phase angle < 2 degrees (valid for 70A or higher)
• Operates from 50 Hz to 400 Hz
• 8 ft. twisted-pair lead, 22AWG
• UL recognized, CE, and RoHS compliant

Product Downloads

• Magnelab SCT-1250 Datasheet (0.19MB)
