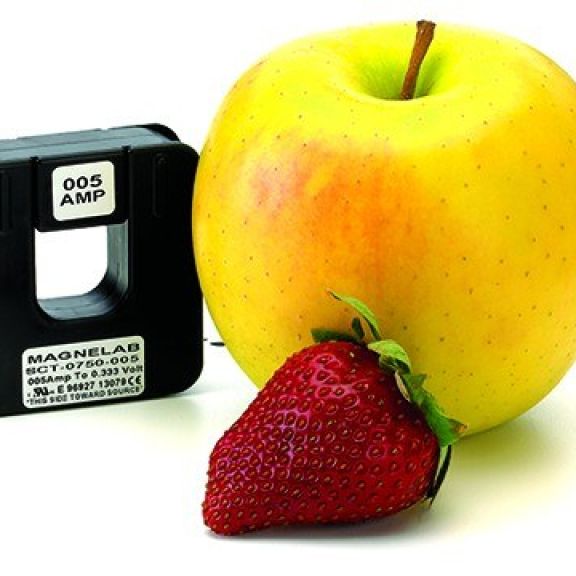

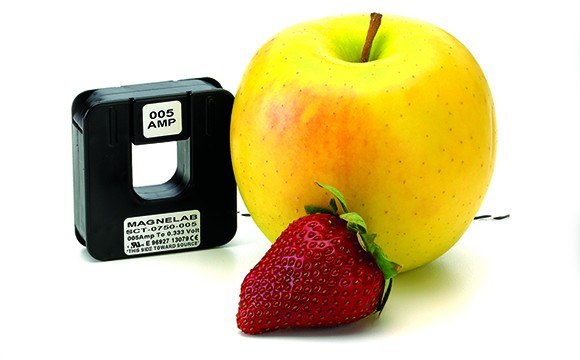

Magnelab Split-Core AC Current Sensor SCT-0750 (0.333V output)

Product Details

Magnelab's SCT-0750 Series split-core current sensors "sense" AC current up to 200 Amps passing through the center conductor. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor.

The SCT series have a self-locking mechanism.

SCT-0750 Models:

• SCT-0750-010 (10A)
• SCT-0750-020(20A)
• SCT-0750-030(30A)
• SCT-0750-050(50A)
• SCT-0750-070(70A)
• SCT-0750-100(100A)
• SCT-0750-150(150A)
• SCT-0750-200(200A)

Product Specification

• Rated input up to 200 Amp (Depending on model)
• Output of 0.333 Volt at rated current
• Linearity accuracy ± 1%
• Accuracy at 10% to 130% of rated current
• Phase angle < 2 degrees (valid for 70A or higher)
• Operates from 30 Hz to 1,000 Hz
• 8 ft. twisted-pair lead
• UL recognized, CE, and RoHS compliant

Product Downloads

• Magnelab SCT-0750 Series Datasheet (0.16MB)
