Magnelab Split-Core AC Current Sensor SCT-0400 (0.333V output)

Product Details

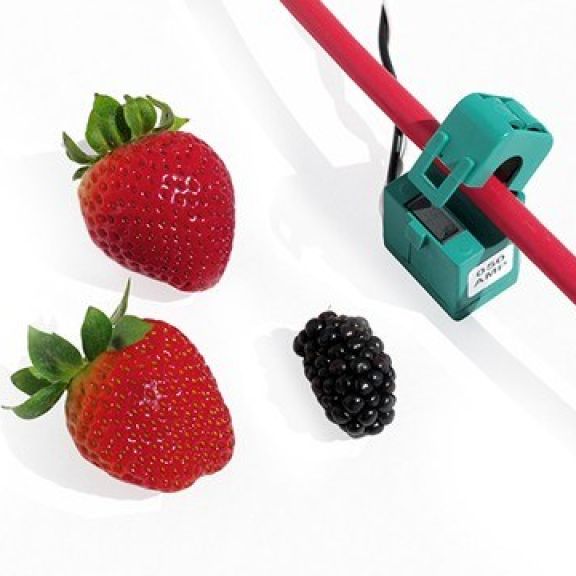

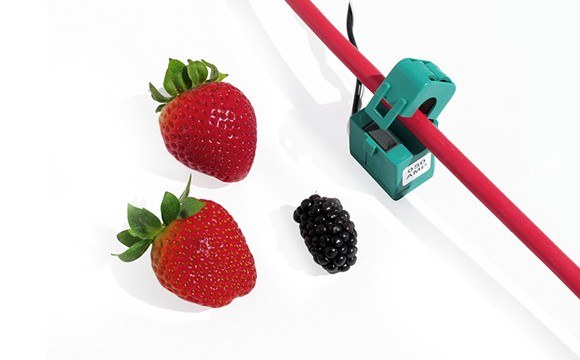

Magnelab's SCT-0400 Series split-core current sensors "sense" AC current up to 75 Amps passing through the center conductor. Split-core transformers are ideal for installation on existing electrical wiring by ‘clipping’ around the conductor.

The SCT series have a self-locking mechanism guaranteed for 500 opening-closing cycles.

SCT-0400 models:

• SCT-0400-005 (5A)
• SCT-0400-010 (10A)
• SCT-0400-015 (15A)
• SCT-0400-020 (20A)
• SCT-0400-025 (25A)
• SCT-0400-030 (30A)
• SCT-0400-040 (40A)
• SCT-0400-050 (50A)
• SCT-0400-060 (60A)
• SCT-0400-075 (75A)

Product Specification

• Rated input up to 75 Amp ( Depending on model)
•  Output 0.333 Volt AC at rated current
• Linearity accuracy ± 1%
• Accuracy at 10% to 130% of rated current
• Phase angle < 2 degrees (valid for 20A or higher)
• Operates from 50 Hz to 1,000 Hz
• 8 ft. twisted-pair lead
• Hinge guaranteed for 500 opening-closing cycles.
• UL Recognized, CE, and RoHS compliant

Product Downloads

• Magnelab SCT-0400 Split-Core mV Datasheet (0.87MB)
