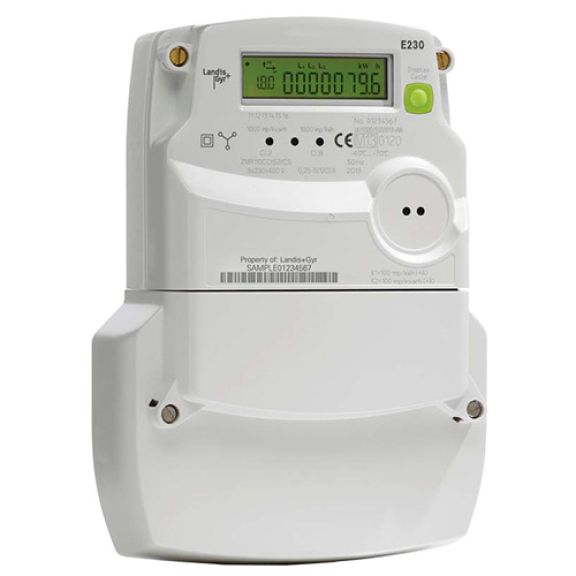

Landis+Gyr E230 Three phase MID Multi-function meter (5129B)
- Active and Reactive Energy (Four Quadrant/Import export)
- MID Certified
- Direct Connection: 5A to 125A (3ph 4w or 3ph 3w)
- Dimensions: Width 170mm, Height 182.4mm, Depth 65.5mm
- Dual-rate with internal time switch
- Large LCD Screen
- Multiple Tariff options (4)
- Multi-Energy ready: Electricity, Gas, Water and Heat meters on the display by optional pulse inputs (Shows readings)
- Voltage inputs: 3 x120/208V x 120/400V
Product Details
The Landis & Gyr E230 Three phase MID Multi-function meter allows up to 4 tariffs, Direct Connection (5-125A), Import/Export measurements and 2 Pulse outputs as standard.
E230's are the MID replacement for the older model '5129B' by Landis & Gyr (OFGEM)
