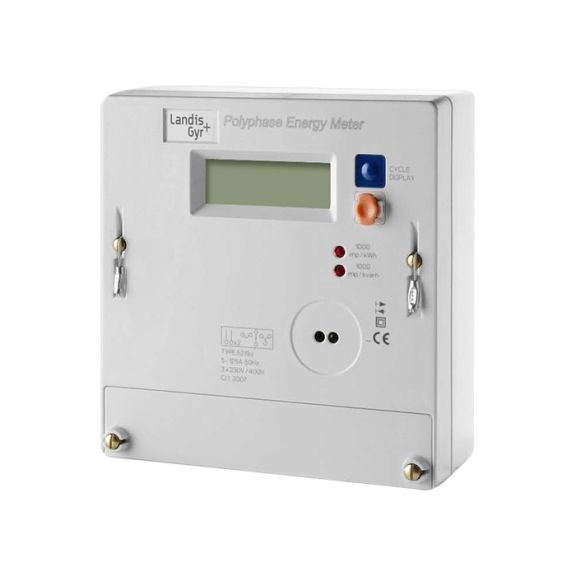

Landis & Gyr 5219b Three Phase Electric Meter
The meter has been given a 20 year certification life by OFGEM, the regulator for the UK. This is based on a reliability of better than 97% over 20 years calculated using an OFGEM model.
- Whole-Current meter (20 -100A)
- Accuracy: Measure kWh class 1% and KVArh class 2%
- Connections: Polyphase (3ph 3w, 3ph 4w, 2ph 4w,1ph 2w, 1ph 3w)
Product Details
The Landis & Gyr 5219 is a Three phase, Direct connected, 20-100A kWh meter with both active (class 1.0) and Reactive energy (KVArh) (class 2.0) management features.
5219B's are OFGEM approved for billing, housed in a compact casing and includes an optical port for data acquisition and programming (E230 replacement model is MID approved).
Product Specification
- OFGEM Approved
- System Voltage 230/400V
- Import & Export readings
- Three Phase Networks
- Direct connected 100A
- Pulsed output
- Voltage Burden <2W <10VA
- Current Burden <0.5VA @ Imax <1VA
- Frequency 50Hz +/-5%
