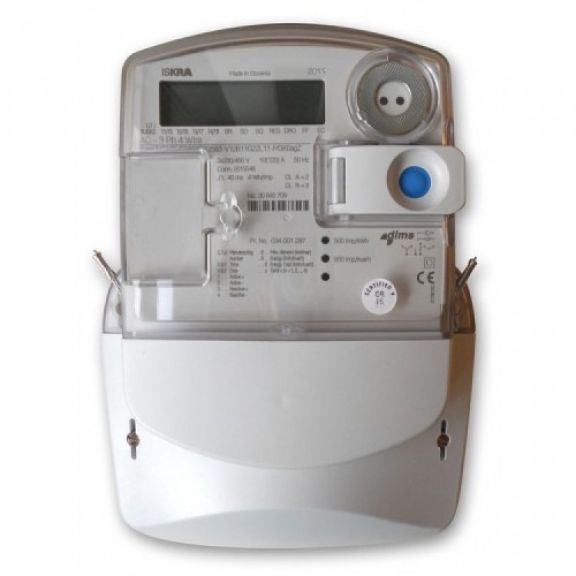

Iskra MT382 Polyphase MID Meter with Pulse Output
The MT382 is the replacement for MT375 (Discontinued meter)
- Dimensions: Height: 250mm, Width: 178mm and Depth: 86mm
- Current: 5A or 100A (Depending on model)
- Four Quadrant measuring
- GSM/GPRS communication (AMR (registers and load profiles)
- MBus communication
- Multiple Tariff options
- MID Approved
Product Details
Camax are supplying the MT382 range of kWh Tariff meters capable of measuring inputs from water, gas or heat meters.
The meter is ideal for billing purposes (MID approved) with GSM communication, Pulse Outputs, Multiple Tariff options and Four Quadrant measuring.
MT382 has two different models:
- MT382 - 5A Current Transformer Connection
- MT382 - 100A Direct Connection.
Product Specification
- Dimensions: Height: 250mm, Width: 178mm and Depth: 86mm
- Nominal Voltage: 3x 240 (L-N)/ 415V (L-L)
- Nominal current: 5A or 100A (Depending on model)
- Max Current: 6A or 125A (Depending on model)
- Accuracy: Active energy Class 2 or Class 1
- Pulse Output
- Real-time clock
- Inputs for reading: Water, Gas or Heat Meters
- 4 Quadrant measuring
- GSM/GPRS communication
- AMR (registers and load profiles)
- MID Approved
- Exchangeable SIM card (protected under terminal cover)
- Multi-Tariff (Up to 8)
- M-Bus commutation
- Alarm functions
- Code 5 compatible
- Protection: IP54
