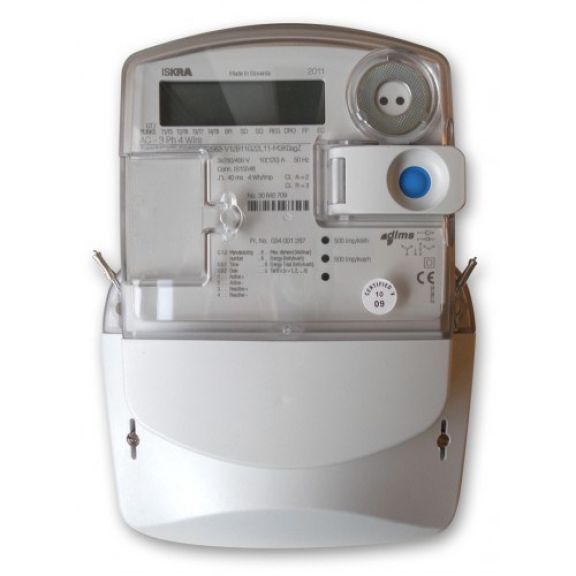

Iskra MT375 3 Phase Wireless Smart MID Meter

Product Details

MT375 is targeted at deregulated energy markets and enables provision of an AMR service. It is a polyphase meter intended for use in Commercial/Industrial and CoP5 applications. The meter incorporates a fully integrated GSM modem. The integrated GSM modem can be exchanged with integrated RS485 communication interface for multi-site installations.

It is a perfect combination of well-metering technology and state-of-the-art GSM communication modem, all integrate and sealed in a single enclosure. The integrated solution attains the same high quality and reliability of Iskraemeco meters.

The meter is approved according to IEC 62052-11 and IEC 62053-21, ISO 9001, and designed according to even higher internal Iskraemeco standards, based on 60 years of experience of meter manufacturing and more than 55 million meters installed worldwide.

The Iskra MT375 has two model types:

• 5A Current Transformer Connected
• 125A Direct Connected (Whole-Current)

Product Specification

• Accuracy class (IEC 6205321) - 2 or 1
• Nominal current In (CT connected) - 5 (6) A or (Whole Current) - 125A
• Nominal voltage Un - 3x230/400V
• Voltage range: 0,8 Un -1,15 Un
• Dimensions - 250 x 178 x 86 mm
• Fully integrated GSM modem with SIM card - AIRTIME and DATA COLLECTION NOT INCLUDED
• AMR on demand and alarm call-backs
• CoP5 compatible
• 'Fit and go' - simple and fast installation procedure
• Multi-utility input for water, heat or gas meters reading
• Active/reactive, multi rate metering
• Indication of operational statuses
• Very high EMC immunity

Product Downloads

• MT375 Datasheet (0.16MB)
• Iskra MT/ME Series Manual (1.75MB)
