Inepro PRO-1D Single Phase kWh 45A Series

Product Details

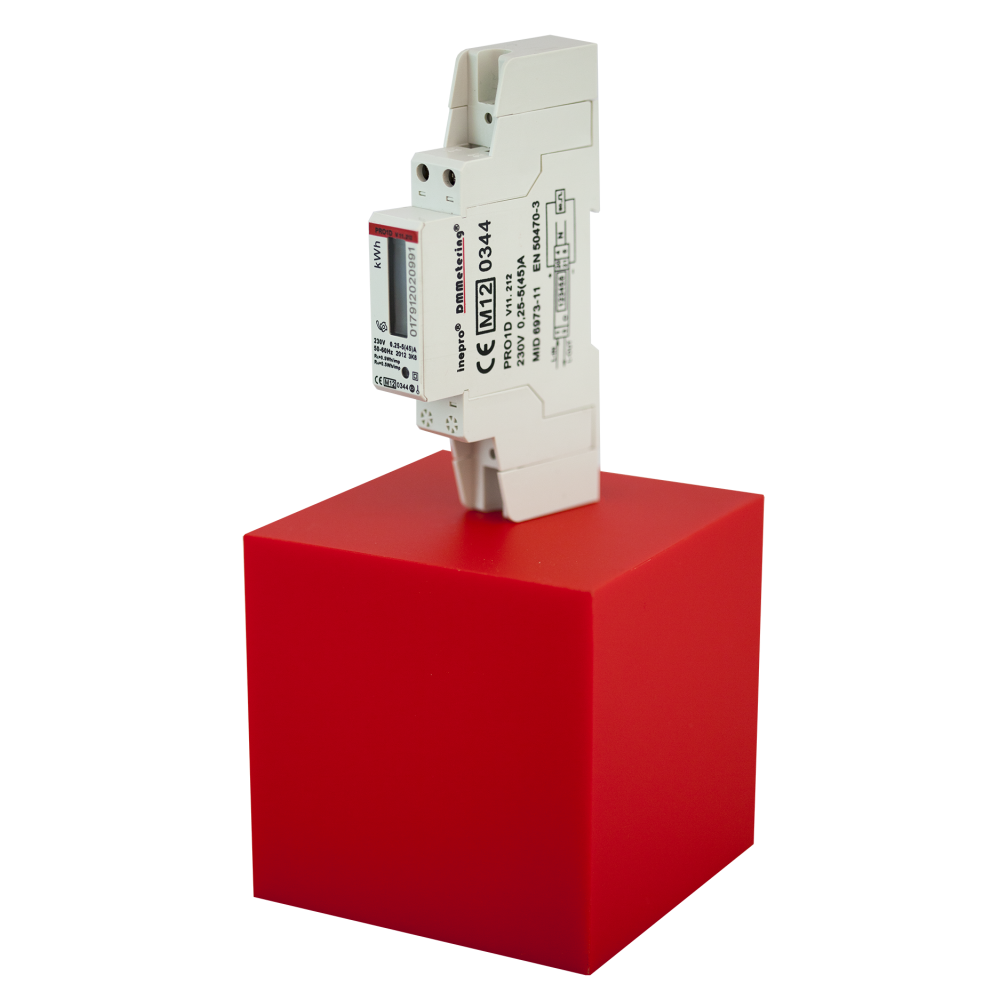

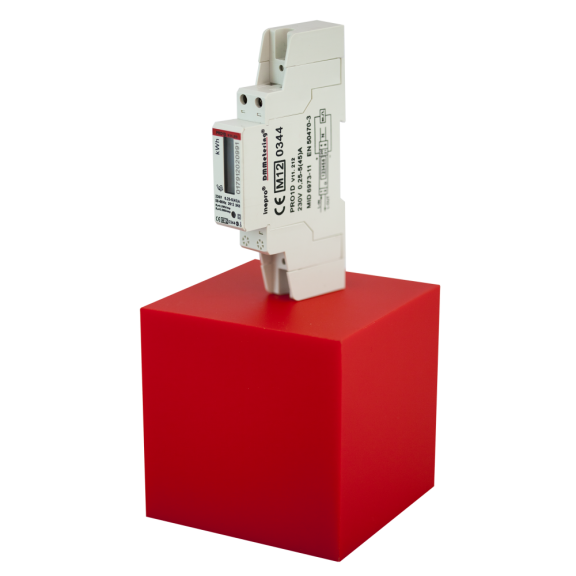

The PRO-1D is a cost-effective single phase kWh metertype with an LCD display in a 1 DIN-Module housing (18mm) casing. The meter is available with or without MID approval for billing.

MID models available:

• 0179 PRO1: MID, 45A, 2000 SO Pulse Output, LCD display 5+1, backlight
• 0180 PRO1: MID, 45A, 2000 SO Pulse Output, LCD display 5+2/6+1, backlight

Product Specification

• Height with protection cover : 120mm
• Height without protection cover : 91mm
• Width : 18mm
• Depth : 63,5mm
• Mounting : DIN rail
• Active energy : ±1%
• Starting current : 0,05Ib
• Impulse S0 duration : 80ms
• Operating humidity : ≤75%
• Storage humidity : ≤95%
• Operating temperature : -25° ~ +55°C
• Storage temperature : -30° ~ +70°C
• Nominal Voltage (Un) : 230V AC
• Operational Voltage : 195~253V
• AC Voltage withstand for 1 min : 4KV
• Impulse voltage 1.2uS Waveform : 6KV
• Basic current (Ib) : 5A
• Max current (Imax) : 45A
• Operational current range : 0,4%Ib~Imax
• Over current withstand : 30Imax for 0.01s
• Operational frequency range : 45-60Hz
• Int. power consumption : ≤2W/Phase - ≤10VA/Phase
• Basic error : standard
• International standard : EN50470-3
• IP protection : 51
• Protective class : II
• Warranty : 60 months - Year 1-2 100%, Year 3 75%, Year 4 50%, Year 5 25%
