IME IF4C001 Conto 12 Impulse to Modbus RS485 Pulse Acquisition 4 module

Pulse input coming from: Energy, Gas, Water and Heat meters

Pulse input coming from energy, gas, water, heat meters, etc
12 passive pulse inputs SPST - NO contacts (energy, gas, water and heat meters)
6 active pulse inputs - max 27V DC EN61131-2
12 non resettable independent counting registers (max 9 digits each)
3 different configuration
RS485 communication MODBUS/JBUS
Up to 255 units may be connected to a bus system
Data held in memory in event of power failure

Enquire Now

Product Details

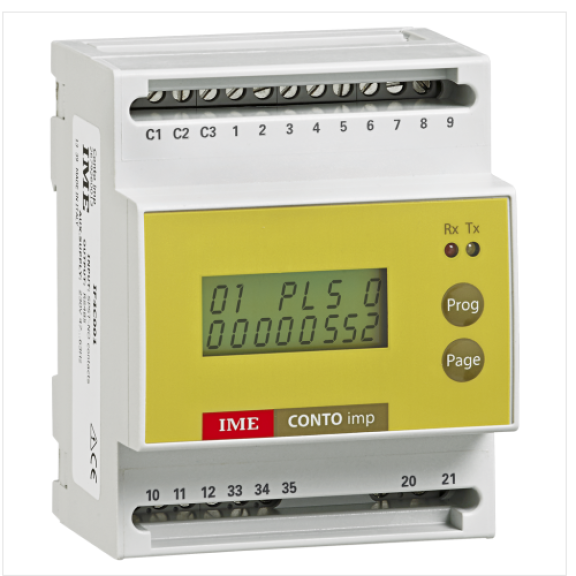

The IF4C001 is a D4 Din rail mounting module designed for use with any device that provides a pulsed signal, such as energy, gas, water and heating meters. Up to 12 devices may be measured in such a way to be communicated to a remote point via RS485 serial link.

Pulse input coming from Energy, Gas, Water, Heat meters etc

State of inputs:

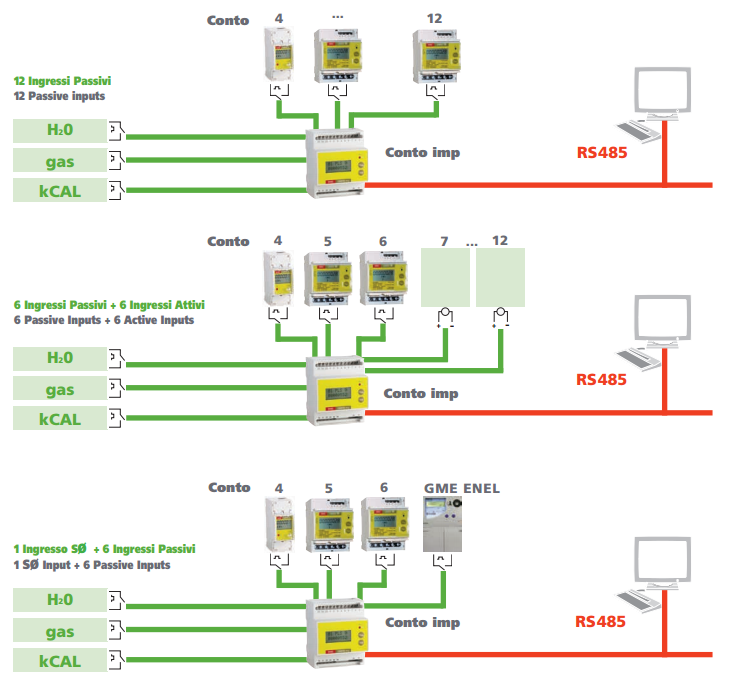

1. Pot Free/Passive (wiring diagram S1000/378)
- 12 inputs from potential - free contact, singularly programmable (Must confirm values). Terminals: (1...12)

2. Pot Live/Active (wiring diagram S1000/383)
- 6 Inputs from potential-free contact (1...6) singularly programmable.
- 6 Active inputs, singularly programmable (7...12) to manage the active and reactive, positive and negative energy registers, subdivided into 4 tariffs

3. GME SØ
- 6 Inputs from potential-free contact (1...6) singularly programmable.
- 6 Inputs from GME ENEL (7...12) to manage the active and reactive, positive and negative energy registers, subdivided into 4 tariffs (time slots for positive and negative energy)

Product Specification

Input
Unit: Pulses- kWh-Kvarh, kVAh, mc (cubic meter), Nmc (Normal cubic meter)
Pulse weight: 1 Pulse = 0,001-0,01-0,1,1,10,100,1000
OFF time: 5-10-20-40-50-100-200-300ms

RS485 Communication
Address: 1...255
Communication speed: 9600 -19200 bit/second
Parity bit: even-odd-none

Wiring schematics:
A Tx/RX: + 33
B Tx/RX: - 34
GND: 35
Auxiliary supply: 20 and 21
