Hobut Micro 19 Split Core Current Transformers with 0.333V secondary output

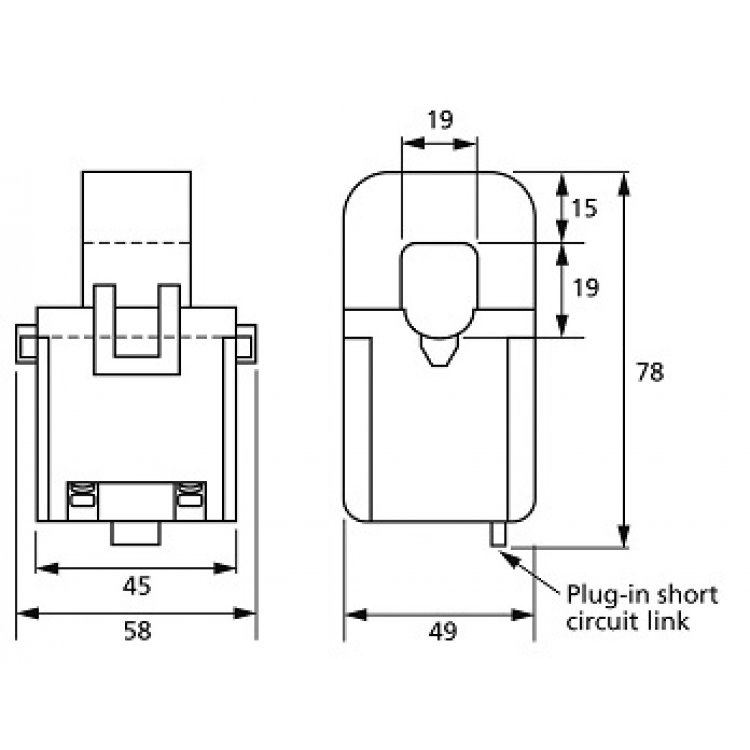

Internal Diameter: 19mm
Accuracy: Class 1%
1 Metre Flying Lead version stocked (Terminal and Shorting Link models to order)

Enquire Now

Product Details

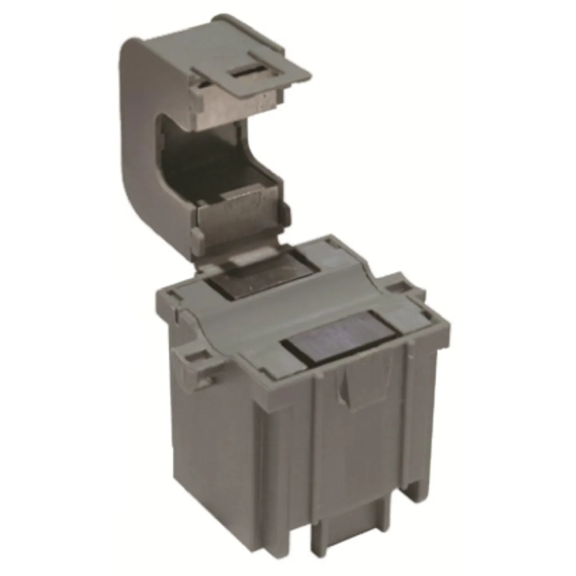

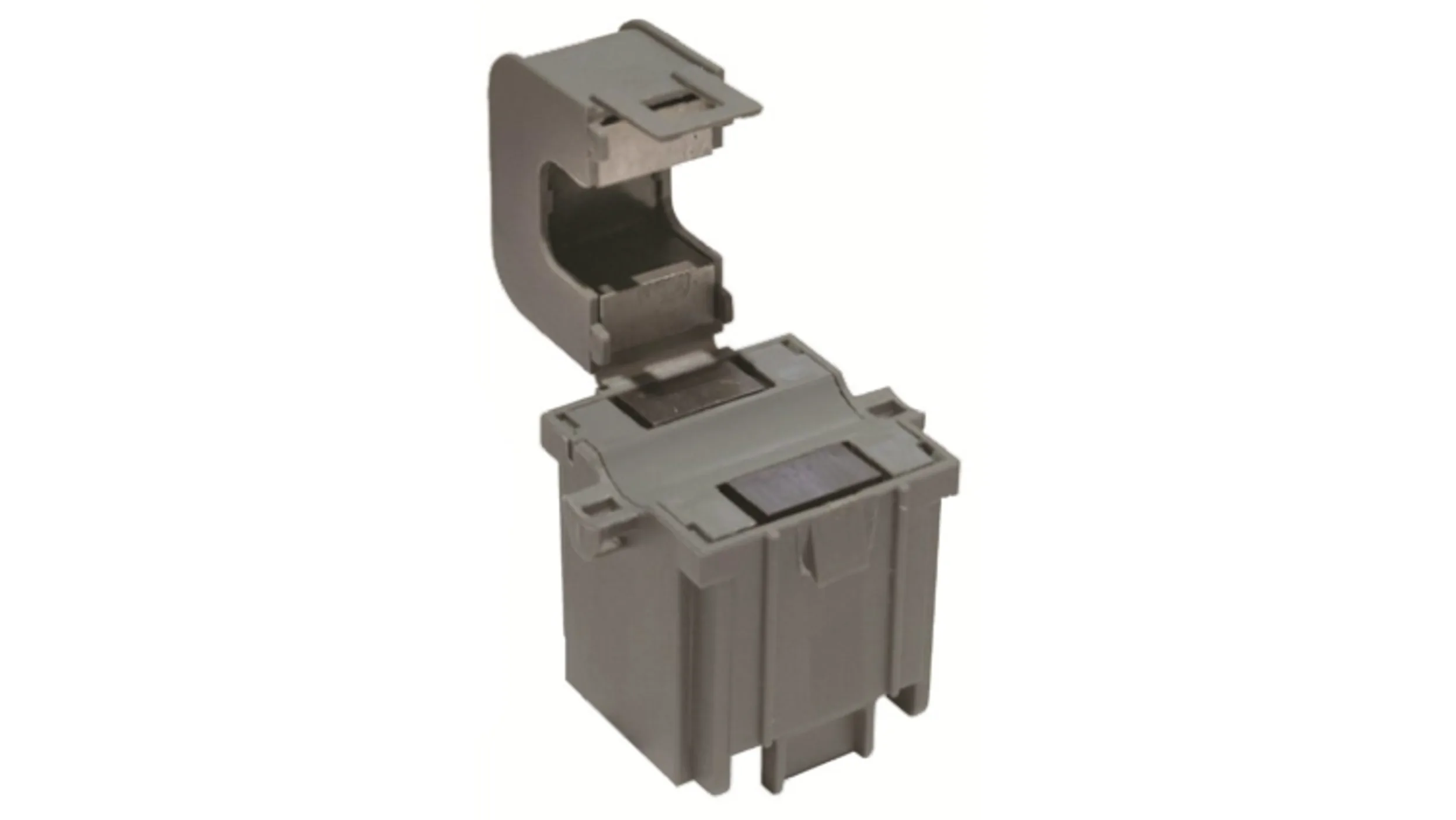

The "Micro 19" range of split core CT's are amongst the smallest available and can be supplied with choice of screw clamp terminals, flying leads and unique plug-in short circuit link.

This page shows the Micro19 range of split-core CT's, we keep stock of the 1M flying lead and screw clamp terminal versions.

Micro19 models:

Micro19 - 100A:0.333V
Micro19 - 125A:0.333V
Micro19 - 150A:0333V
Micro19 - 200A:0.333V
Micro19 - 250A:0.333V

Product Specification

• Conforms to BS EN 60044-1/IEC 60044-1
• Rated system voltage 0.72/3kV
• Ambient temperature range -30ºC to 55ºC
• VA rating: 100A/125A = 1VA, 150A/200A = 1.5VA, 250A = 2VA

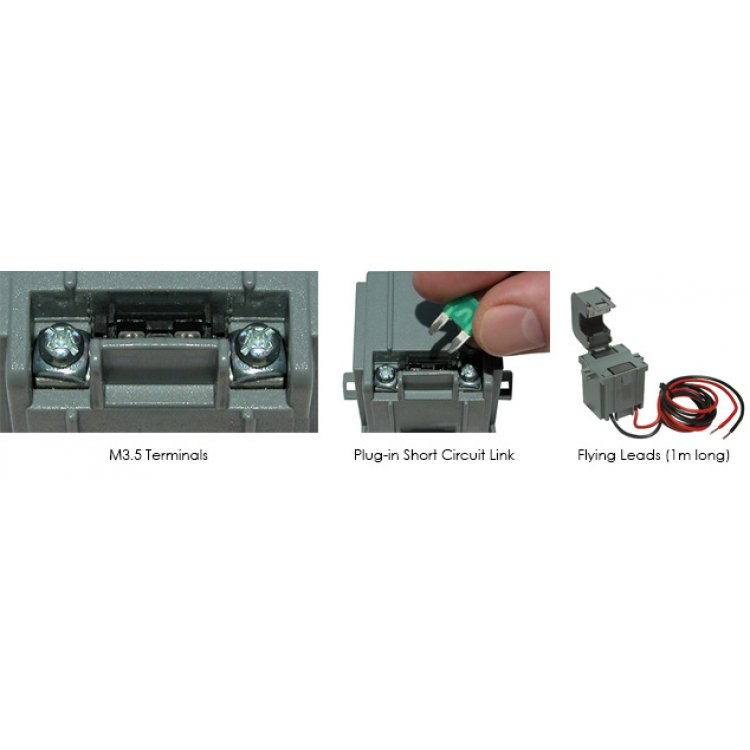

Different Options Available:
• M3.5 screw clamp secondary terminals (stock item)
• Plug-in short circuit link (to order)
• 1 metre flying leads (stock item)
