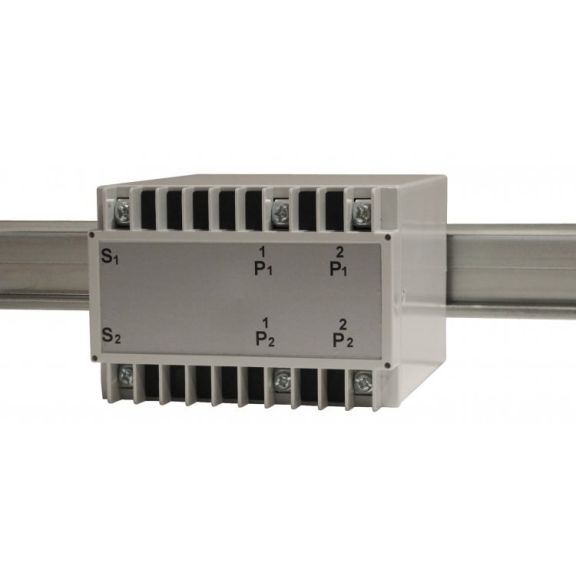

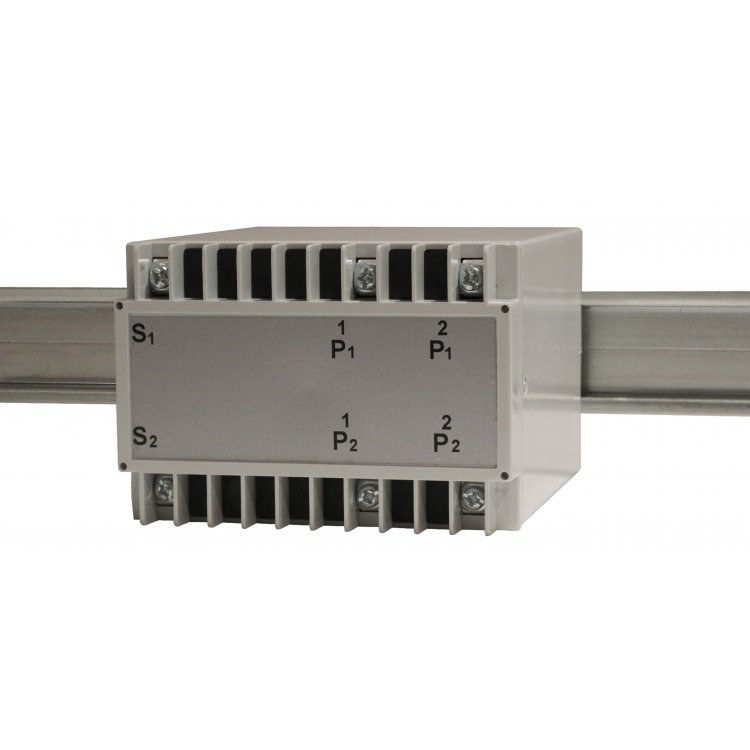

Hobut CTM100 Summation Current Transformer Range with 5A output (CTM1002X5/5-5/1)
Hobut CTM100's can be supplied ex-stock at Camax UK Ltd
3 Required for Three Phase Systems - 1 per Phase
- Accuracy: Class 1

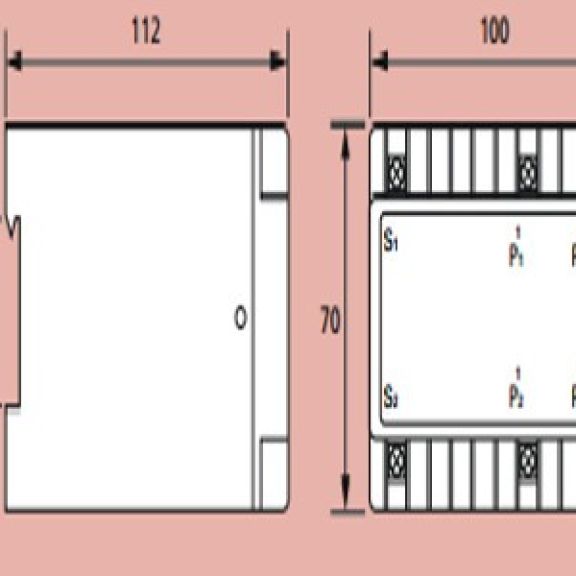

- Dimensions: Diameter: 100mm, Height: 70mm, Width: 112mm
- DIN rail mounted
- Protected terminals
- Up to 9 inputs (equal ratio)
- Unequal ratios and higher accuracy on available upon request (Please contact us)
Product Details
DIN rail mounted Summation Current Transformers in compact sizes, available in 5A or 1A input (please contact us) and 1% accuracy.
For summing of several independent loads on different or single systems (See specification for various models)
Product Specification

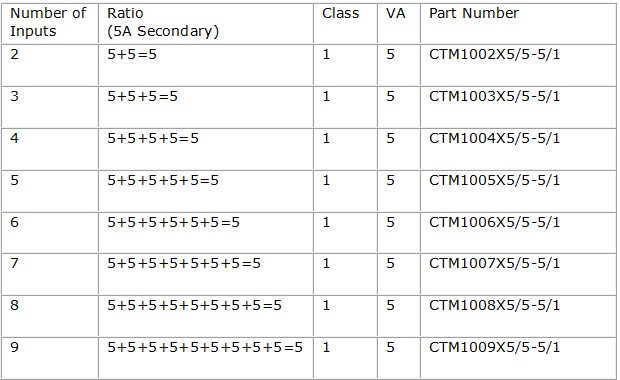

Hobut CTM100 Models:
- Conforms to: EN 60044-1 / EN 61869-2
- Rated system voltage: 0.72/3kW
- Ambient temperature: -30º to +75º
- Continuous current: 1.2 x rated current
