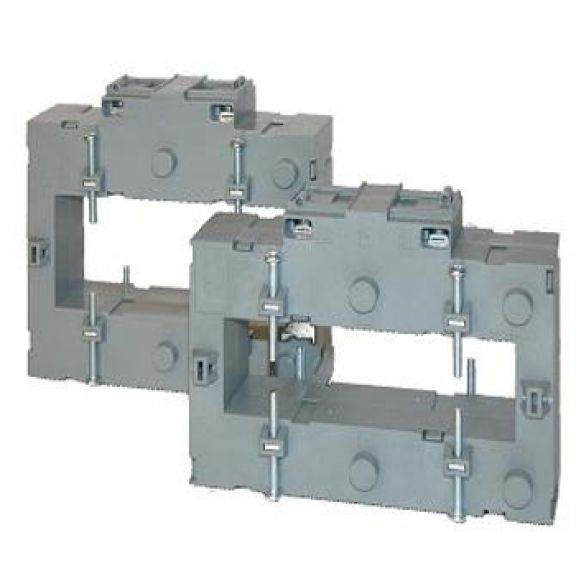

Hobut CTHM 127 Moulded case current transformers (127 x 38mm)

Product Details

Hobut CTHM127 series consist of compact moulded cases current transformers suitable for primary currents up to 5000A (depending on the model) with built in terminal covers.

For transforming various Primary currents into 5A (Please contact us for 1A) standard secondary using 120mm or 125mm busbars).

CTHM127 models:

• 1000:5A
• 1200:5A
• 1250:5A
• 1500:5A
• 2000:5A
• 2500:5A
• 3000:5A
• 3200:5A
• 4000:5A
• 5000:5A

Product Specification

• Conforms to: IEC185, BS7626, BSEN 60044-1 & IEC60044-1

• Rated System Voltage: 0.72/3kV

• Class 3,1,0.5, 0.2 or 0.2S available

• Ambient temperature range -30ºC to 85º

• Continuous current 1.2 x rated current

• Sealable terminal covers

• Protection CT’s also available by request

Product Downloads

• CT127 Series Datasheet (0.07MB)
