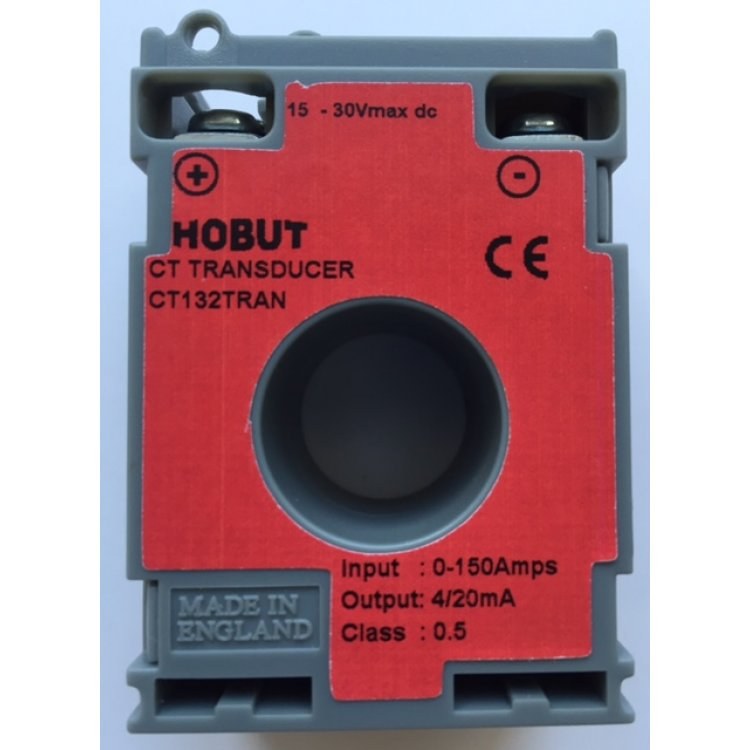

Hobut CT132TRAN Current Sensor/Current Transducer with 4-20mA Loop powered output
- Wiring: 2 wire system
- Aperture: 21mm
- Width: 45mm
- Height: 65mm
Product Details
Camax are now supply Hobut 132RTRAN
Current Sensors/Current Transducers for 10 - 150A AC inputs for DC signals.
- Aperture: 21mm
- Width: 45mm
- Height: 65mm
Product Specification
- Accuracy: Class 0.5, EN 60688
- Response Time: 200msec
- Output: 4-20mA DC (15-30V DC loop powered, 24V nominal) - max load 600ohms at 24V DC
- Temperature Range: -15 C to + 50 C
- Isolation: 4kV 50Hz (1sec)
- Operating Range: 0-120% nominal full scale
- Frequency Range: 45/65Hz
