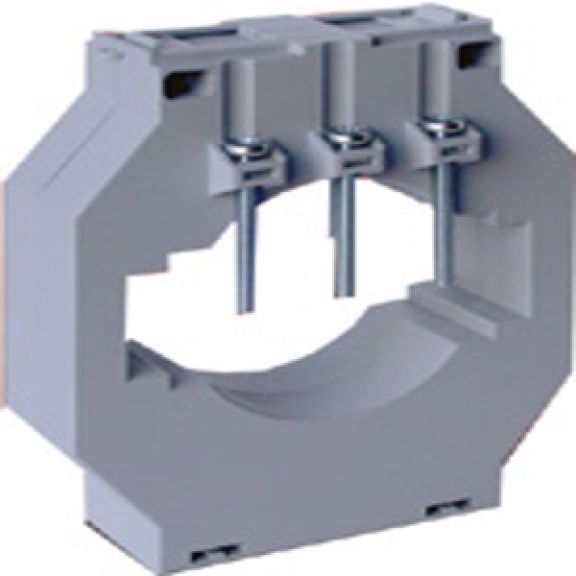

Hobut 21 Series (211) Moulded Case Current Transformers (85mm diameter, 400A to 5000A)
- Accuracy: Class 1
- Built in sealable terminal covers
Product Details
The CT’s are low cost Moulded-case Current Transformers suitable for Primary Currents from 400A to 5000A with built-in sealable terminal covers.

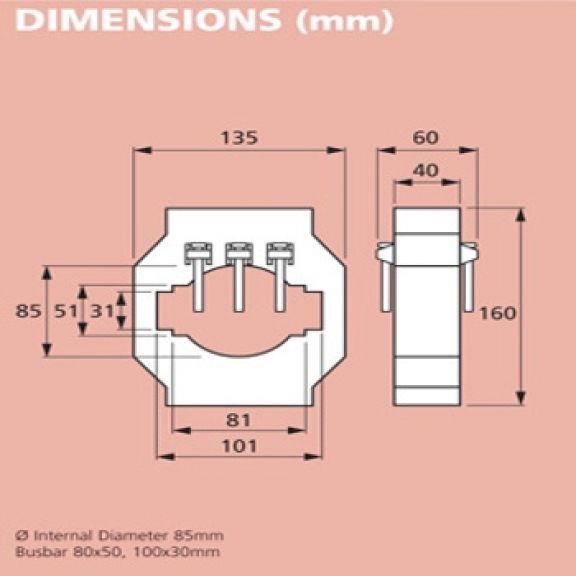

211 Current Transformers can be built to either a 5A or 1A standard secondary (1A upon request) using up to 101x30mm or 81x51mm busbars or cables up to 85mm diameter.
CT211 models:
- 400:5A
- 500:5A
- 600:5A
- 800:5A
- 1000:5A
- 1200:5A
- 1250:5A
- 1500:5A
- 1600:5A
- 2000:5A
- 2500:5A
- 3000:5A
- 4000:5A
- 5000:5A
Product Specification
• Conforms to: IEC185, BS 7626, BSEN 60044-1, IEC 60044-1, BSEN 61869-2 and IEC 61892-2.
• Rated system voltage: 0.72/3kV.
• Ambient temperature range: -30°C to 40°C.
• Continuous current: 1.2 x rated current.
