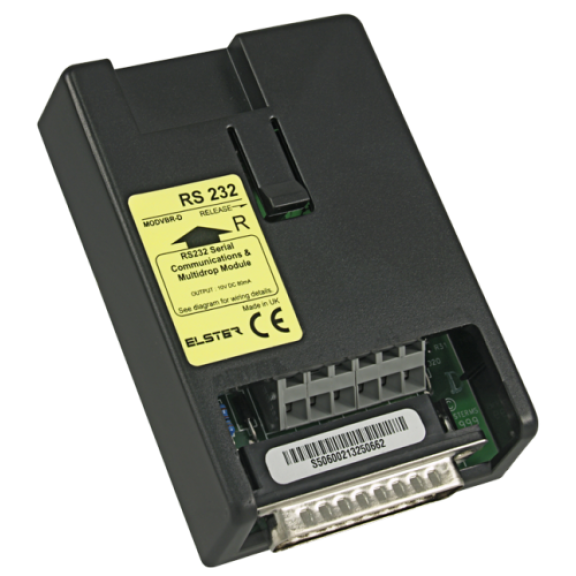

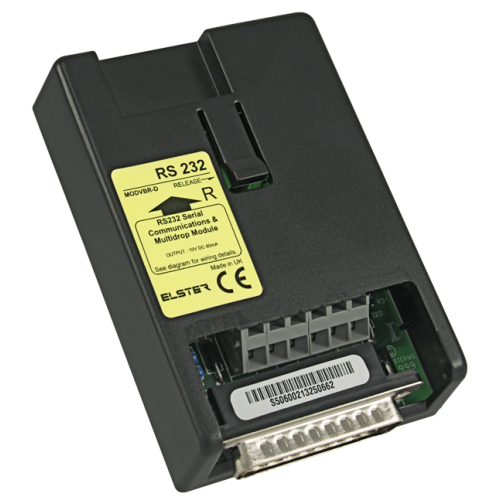

Elster A1700 RS232 Serial to Multidrop Module - (UK504-045)

Product Details

The Elster RS232 module allows direct connection to any RS232 communications device through a standard 25-way D-type connector. The RS232 module allows direct connection to any RS232 communications device through a standard 25-way D-type connector.

The module has a 10V 80mA supply to power a modem. The power is provided via the 25-way connector allowing the modem to plug directly into the module beneath the terminal cover.

• Connect Up To 10 Meters.
• 12 Metre Transmission. 25way D Connector
• 10V /80 mA supply to modem (No external power required)

Product Specification

• 25-way D-type connector

• Multi-drop terminals

•10 Volt modem supply

• Connection for up to 10 meters

• 12 metres transmission distance

• Standard RS232 pin connections

• Class II isolation from meter

Product Downloads

• Elster A1700 Comms Card Datasheet (0.1MB)
