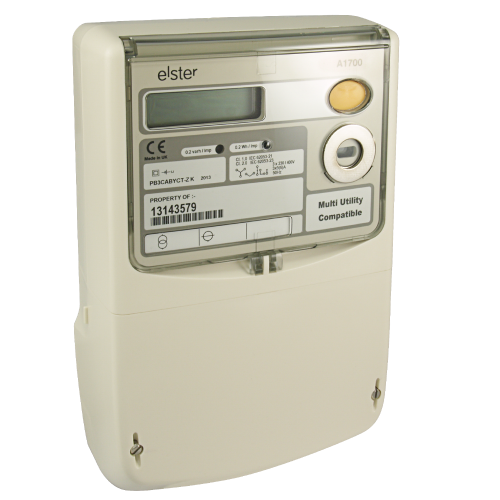

Elster A1700 MID Smart Tariff Meter (UK504-014, UK504-021, UK504-016, UK504-023, UK504-015)
This page covers all A1700 Models
All Class 1 models are stock items at Camax UK
CT meters require manual programming (Please specify your required Primary Ratio in correlation with the CT's)
- COP5, COP3 and COP2 compliant
- Accuracy: Class 1 standard (0.5 and 0.2 available to order)
- Voltage Range: 57.5 - 240V (3 ph 4 wire)
- Voltage Range: 100 - 415V (3 ph 3 wire)
- Compact Design
- Comprehensive tariff structure
- Four Quadrant measurements
- Internal clock and calendar with battery back-up
- MID/OFGEM Approved
- Pulse Output (4 Solid-state relays)
Product Details
The Elster A1700 offers superb measurement and complex tariff capabilities for use in: commercial, solar PVA and renewable energy and industrial CT or Direct connected operated applications (Depending on model).
The meter can operate as a stand alone unit or as part of a comprehensive metering system.
Tariff Structure: 16 or 32 time of use registers, 8 maximum demand registers, 5 coincident demand registers, 12 seasons, 96 switching times, 64 exclusion days.
Elster A1700 Models:
- UK504-014 / EPMT200001: A1700 CT 3Phase 4Wire 5A 230V/400V
- UK504-021 / EPMT200005: A1700 CT 3ph 4wire 1A 230V/400V
- UK504-016 / EPMT001014 : A1700 Direct Connected 100A 3ph 4wire 230V/400V
- UK504-015 / EPMT200002: A1700 CT 3ph 3wire 1A 110V
- UK504-023 / EPMT200005: A1700 CT 3ph 3wire 5A 110V
Product Specification
- Accuracy Class 1 as standard (0.2s or 0.5s if specified; please contact us)
- Voltage Range: 57.5 - 240V (3 ph 4 wire)
- Voltage Range: 100 - 415V (3 ph 3 wire)
- Comprehensive tariff structure
- EC Directive 2004/22/EC (MID) Class A, B or C
- Extensive load profile data (900 or 450 days)
- High Security design
- Instant instrumentation values
- Instrumentation monitoring
- Instrumentation profiling
- 2 kVA registers
- 2 line, multilingual dot matrix display
- 2 module slots for extended functionality
- 4 Solid-State Relays
- 5 co-incident demand values
- Summation of 5 input values
- Temperature compensation to maintain RTC accuracy during power outages
- Voltage imbalance detection
