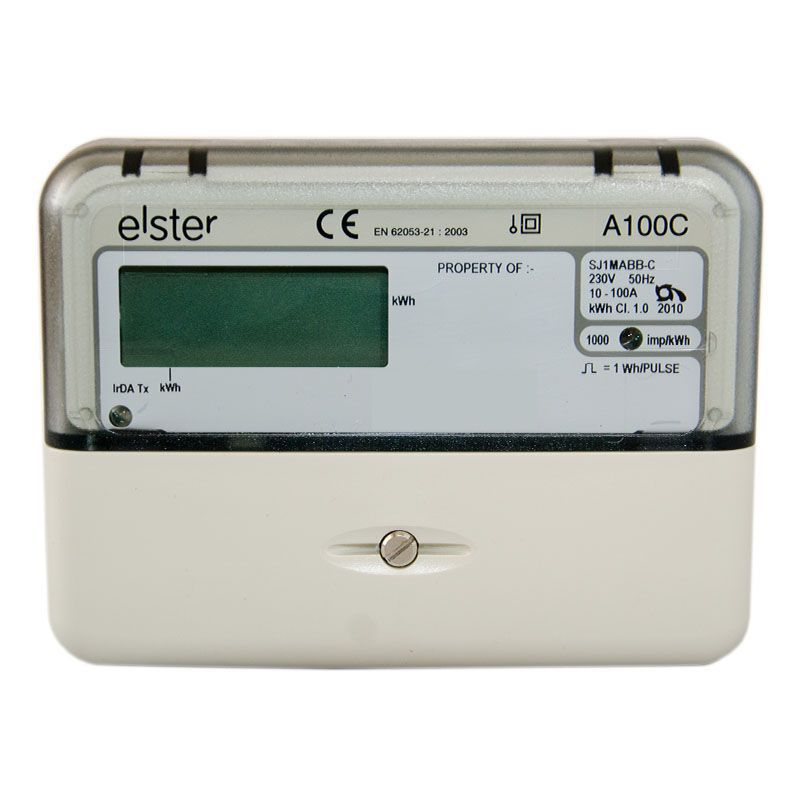

Elster A100C Single Phase MID Electricity Generation Meter (UK504-035)
The successful Range of A100C meters from Elster Metering Systems provide a cost effective solution for one or single rate domestic applications.
- Accuracy Class 1 or Class 2, EN62053-21
- Accuracy Class A or Class B, EN 50470-3:2006 (DIN IrDA only)
- Current Range:10-100A, 20-100A
- Voltage Range: 210-250V, 105-127V
- MID Certified
- Pulse output
- kWh import/export
- 20 years product life
- Large digit (9.8mm) multilingual display with chevron information indication
- Extensive security data
Product Details
The successful Range of A100C meters from Elster Metering Systems provide a cost effective solution for single rate domestic applications. The A100C meter is housed in an extremely compact case.
To further enhance security, the main meter cover is permanently secured to the base during the manufacturing process.
Product Specification
- Accuracy Class 1 or Class 2, EN62053-21
- Accuracy Class A or Class B, EN 50470-3:2006 (DIN IrDA only)
- Current Range: 10-100A, 20-100A
- Voltage Range: 210-250V, 105-127V
- kWh import/export
- 20 years product life
- Large digit (9.8mm) multilingual display with chevron information indication
- Extensive security data
- Communications as standard
- 12kV impulse withstand
- High security, compact design
- Permanently fixed main cover
- IP53 in accordance with IEC 60529:1989
Options
- Auxiliary terminals configured for:
- SO Pulse output (IEC 62053-31)
- Serial data output
