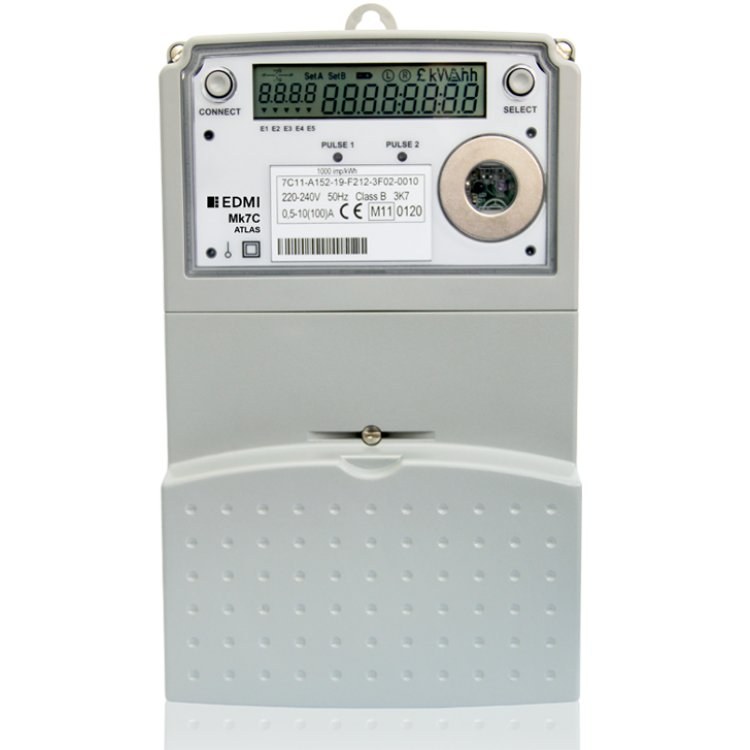

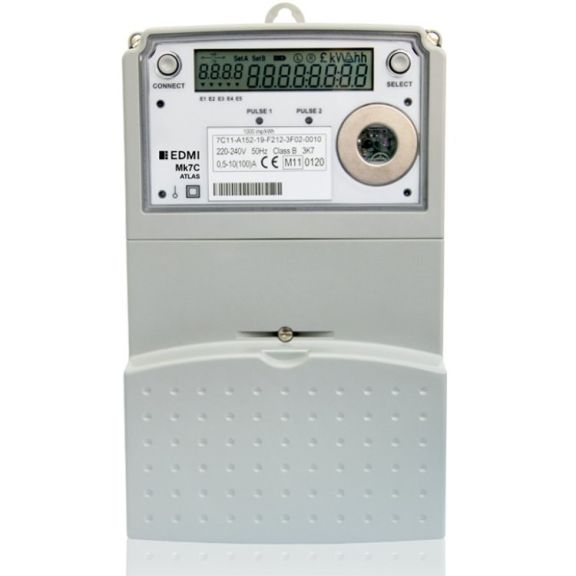

EDMI M7C Single Phase 100A Direct Connected MID kWh meter

Product Details

MK7C is a single phase meter which integrates a 100A relay which allows disconnection and re-connection of electrical services remotely.

Approved Code 5 compliant 3-phase kWh multi-rate tariff meter.

Display: 7 digit LCD display and AMR via GPRS modem (automatic transmit to supply company for billing payments with 8 Tariff options).

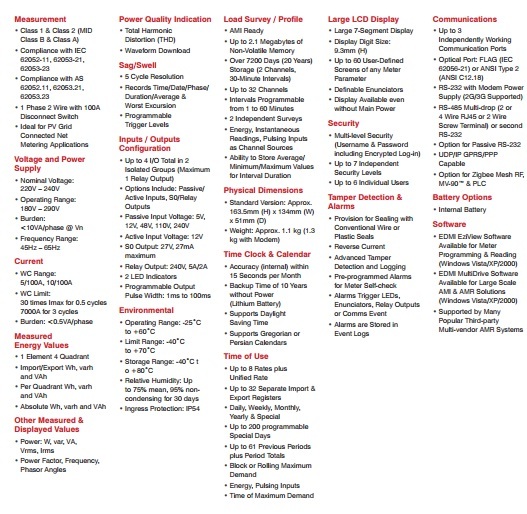

Product Specification

Measurement

• Class 1 and Class 2 (MID Class B & Class A
• Compliance to IEC62052-11, IEC62053-21, IEC62053-23
• Single Phase (3 Circuits)
• Three Phase, Four Wire
• 1 Element 4 Quadrant
• 4 I/O ( Maximum two relay outputs)
• THD (Total Harmonic Distortion)

Voltage & Power Supply

• Nominal Voltage: 220V – 240V
• Operating Range: 140V – 290V
• Burden: < 10VA / phase @ Vn (3 Phase) (IEC52053-61 Compliant)
• Frequency Range: 45 Hz – 65 Hz

Current

• WC Range: 5/100A or 10/100A
• Short time over current: 20 times Imax for 0.5 seconds
• Burden: < 0.5 VA / phase

Environmental

• Operating Range: -40oC to +70oC
• Storage Range: -40oC to +85oC
• Relative Humidity: Up to 95% non-condensing

Product Downloads

• MK7C Brochure (0.23MB)
• EDMI MK7C/MK10A Manual (2.43MB)
