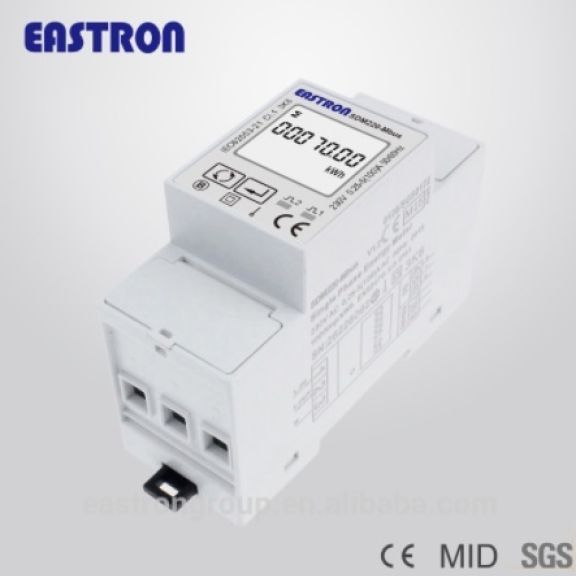

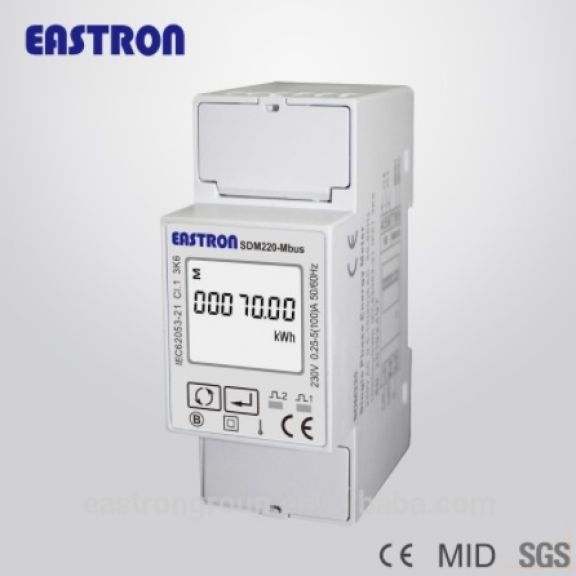

Eastron SDM220-Mbus Single Phase 100A Direct Connected MID Energy Meter
- Measures U, I, P, W, PF, Hz, Dmd, VA, Total kWh, Total kVarh, Import kWh, Export kWh, Import kVarh, Export kVarh, Baud rate
- Bi-Directional measurements and display
- Back-lit display (7 digits)
- Multi-function parameters
- 100A Direct connected
- MID approved
- Housing: 2-DIN Modules
- Password protected
- Pulse 1 Constant: 1000/100/10/1 imp
- Pulse 2 Constant: 1000imp/kWh
- Remote Communications: M-Bus
- Standard: IEC62053-21
Product Details
The SDM220-Mbus is a Single Phase Multi-function Energy Meter with built-in M-bus and 2 Pulse outputs, measuring active and reactive energy cumulative and real-time power.

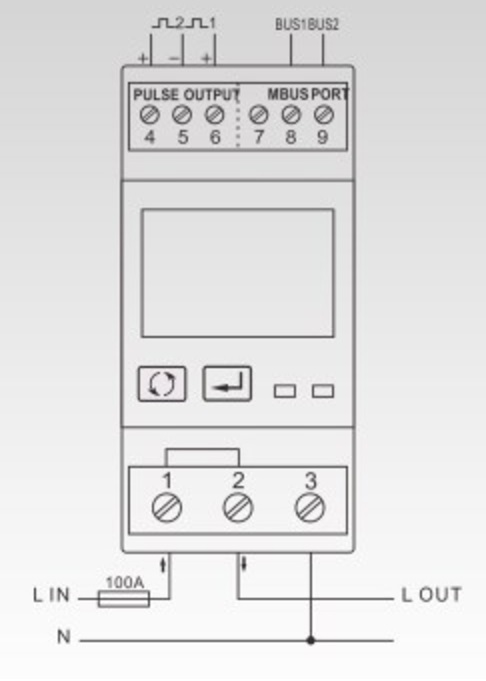

Wiring diagram:

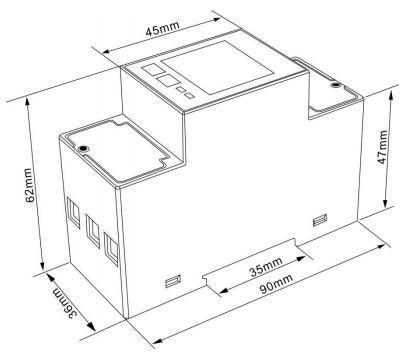

Dimensions:
Product Specification
Meter Specification
- Rated Voltage (Un): 120/220/230V
- Voltage range: 0.8 - 1.2 Un
- Base Current: 5A
- Max Current: 100A
- Pulse 1 Constant: 1000/100/10/1 imp
- Pulse 2 Constant: 1000imp/kWh
- Remote Communications: M-Bus
- Standard: IEC62053-21
Pulse output:
- Total kWh, Total kVarh, Import, kWh, Export kWh, Import kVarh, Export kVarh
- Pulse weight - 1000/100/10/1 impulses per kWh or KVarh
Pulse width - 200/100/60ms M-Bus:
- Configured on-screen in SET-UP MODE
- Baud rate: 300, 600, 1200,2400,4800,9600
- Parity: NONE/EVEN/ODD
- Stop bit: 1 or 2
- Primary address: 001-250
- Secondary address: 0000001-99999999
