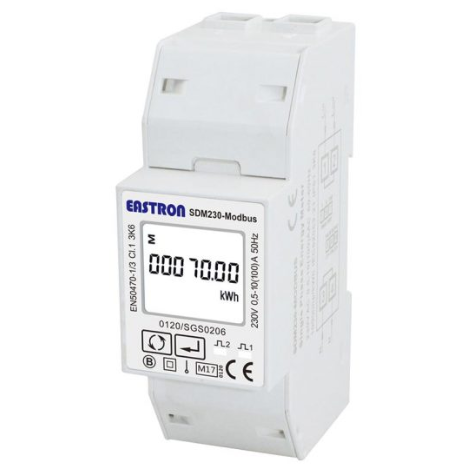

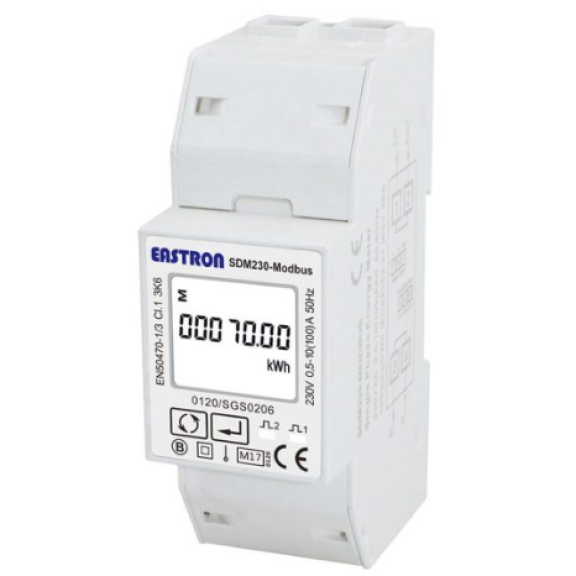

Eastron SDM230-Mbus-MID Single Phase 100A Direct Connected Energy Meter
- Measures kWh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, and more
- Bi-directional measurement IMP & EXP
- Two pulse outputs
- MBUS
- Din rail Mounted
- 100A direct connection
- Class 1.0 accuracy
- 36mm width 2 modual
Product Details
The SDM230 is a 100A, single phase energy meter with bi-directional energy measurement ideal for Solar PV metering. With a Mbus communication port, the unit allows for remote monitoring and can measure a wide variety of parameters. The blue back-lighted LCD screen for prefect reading makes this device suitable for industrial, residential, and utility applications.
Product Specification
General Specifications:
- Voltage AC: 230V
- Voltage Range: 176~276V AC
- Base Current: 5A
- Max. Current: 100A
- Mini Current: 0.25A
- Starting Current: 0.4% of Ib
- Power Consumption: <2W/10VA
- Frequency: 50/60Hz(±10%)
- AC voltage withstand: 4KV for 1 minute
- Impulse Voltage Withstand: 6KV-1.2uS waveform
- Overcurrent Withstand: 30Imax for 0.01s
- Pulse Output 1 Width: 200/100/60ms
Pulse output rate:
- 1000imp/kWh (default)
- 100/10/1 imp/kWh/kVarh (configurable)
- Display: LCD with blue backlit
- Max. Reading: 99999.9kWh
Accuracy:
- Voltage: 0.5% of range maximum
- Current: 0.5% of nominal
- Frequency: 0.2% of mid-frequency
- Power Factor: 1% of Unity
- Active Power: 1% of range maximum
- Reactive Power: 1% of range maximum
- Apparent Power: 1% of range maximum
- Active energy: Class 1 IEC62053-21, Class B EN50470-3
- Reactive Energy: 1% of range maximum
Environment:
- Operating Temperature: -25℃ to + 55℃
- Storage and Transportation Temperature: -40℃ to +70℃
- Reference Temperature: 23℃±2℃
- Relative Humidity: 0 to 95%, non-condensing
- Altitude: up to 2500m
- Warm up time: 10s
- Installation Category: CAT II
- Mechanical Environment: M1
- Electromagnetic Environment: E2
- Degree of Pollution: 2
Mechanics:
- Din Rail dimensions: 36W x 99H x 63D DIN 43880
- Mounting: DIN rail 35mm
- Sealing: IP51 (indoor)
- Material: Self-extinguishing UL 94 V-0
MBUS:
- Baud rate : 300, 600, 1200, 2400(default), 4800, 9600bps
- Parity : NONE(default)/EVEN/ODD
- Stop bit : 1 or 2
- Primary address : 001 to250
- Secondary address : 00 00 00 01 to99 99 99 99
