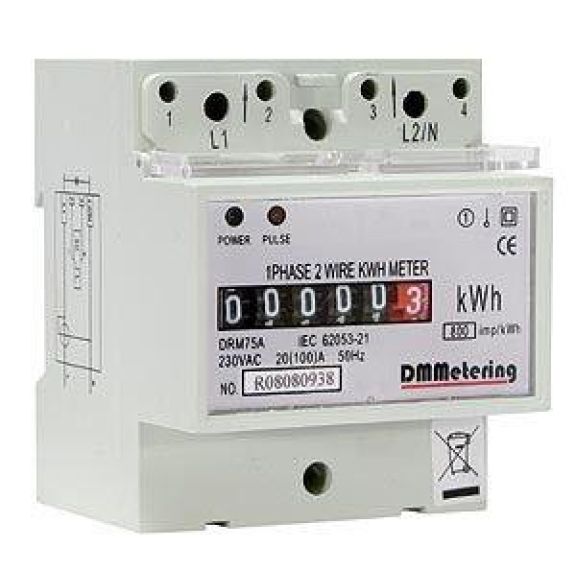

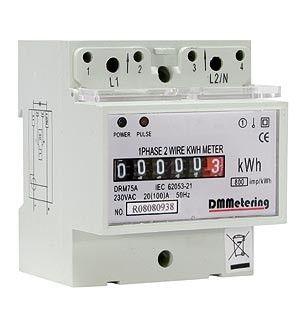

DMM Metering DRM-75A 20-(100A) Single Phase Electricity Meter
- Voltage: 230V AC
- Frequency: 50Hz / 60Hz
- Current: 20 (100)A
- Case: 1 module DIN rail
- Dimensions : 75 x 88 x 73mm (w x h x d
- Accuracy Class: 1%
Product Details
The DRM75A is a single phase electricity meter, designed for both installations on 35mm DIN-rail board and direct on a meter board. The meter complies with the IEC61036 and the GB/T17215-2002 specifications.
The consumed electricity is displayed on a horizontal positioned 5+1 impulse step type register. The meter is also equipped with an SO contact for convenient monitoring with external equipment.
This meter has been developed especially for quick mounting. No clamps but a built in coil. Just pull the wires through both holes and fasten two small screws.
Product Specification
- Voltage: 230V AC
- Frequency: 50Hz / 60Hz
- Current: 20(1 0 0)A
- Power consumption: < 1,5W / 6V A
- AC Voltage withstand: 2KV – 1 minute
- Impulse voltage withstand: 6KV – 1,2µS waveform
- Output: SO according to DIN43864
- Temperature range: -20°C ~ +65°C
- Case: 1 module DIN rail
- Dimensions : 75 x 88 x 73mm (w x h x d
- Accuracy Class: 1
