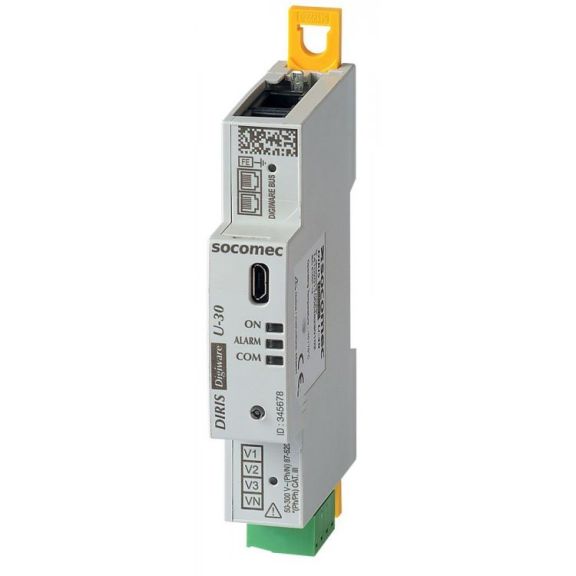

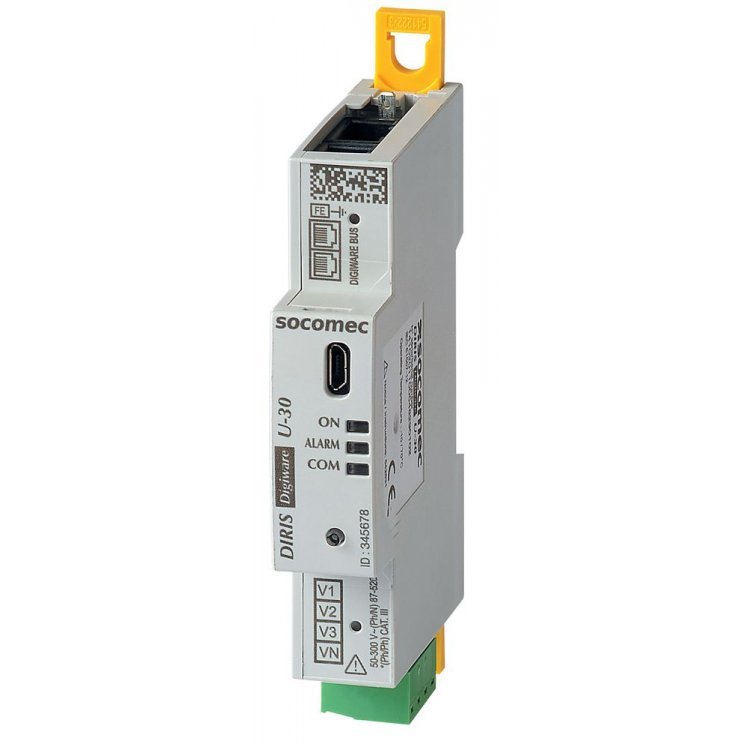

DIRIS Digiware U 3 Voltage Input Measurement modules
- 1 DIN-Module wide
- Plug & Play
- Compact
- 1 Single Voltage Measurement point for the entire system
- Single point of protection for voltage measuring
- A complete solution:- Metering - Monitoring voltage - Quality Analysis of the supplied voltage
- No hazardous voltage on cabinet doors
- Adapted to all types of network: Single or Three Phase
Product Details
Diris Digiware U modules measure voltage for the entire system. This pools together all voltage measurements.
The Digiware RJ45 Bus allows you to pass voltage measurements as well as power supply and communication to all connected products
Measured Parameters
Diris U-10: U12, U23, U31, V1, V2, V3, F
Diris U-20: U12, U23, U31, V1, V2, V3, F, THDv1, THDv2, THDv3, THDu12, THDu23, THDu31
Diris U-30: U12, U23, U31, V1, V2, V3, f - U system, V system - P h/N unbalance (Vnb, Vnba, Vdir, Vinv, Vhom), P h/Ph unbalance (Unb, Unba, Udir, Uinv), THDv1, THDv2, THDv3, THDu12, THDu23, THDu31, Individual harmonics U & V (up to rank 63), Voltage dips, interruptions and swells (EN 50160), Alarms - History of average value
Product Specification
Model Types:
- U-10 Metering 3 Current Inputs 4829-0105
- U-20 Monitoring 3 Current Inputs 4829-0106
- U-30 Analysis 3 Current Inputs 4829-0102
