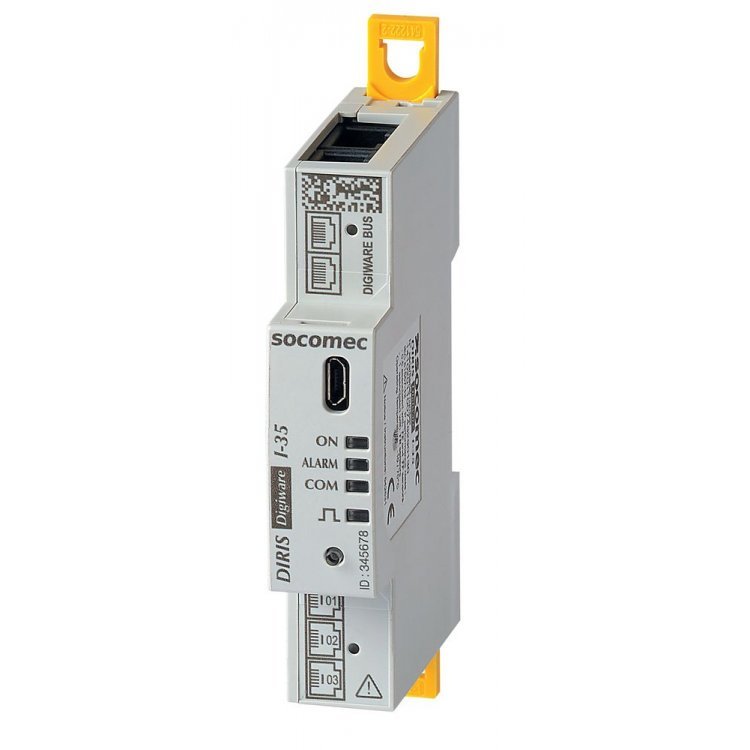

DIRIS Digiware I 3 Current Input Measurement modules
- 1 DIN-Module wide
- Plug & Play
- Compact
- RJ45 and RJ12 Rapid Connection
- Available with 3,4 or 6 inputs
- Single-output or multi-output for maximum optimisation of the number of products
- A complete solution:- Metering - Monitoring - Quality Analysis
- Compliant with standard IEC 61557-12, guaranteeing the quality and accuracy of the system: Class 0.5 for the 2-120% rated current global measurements chain In (with TE/TF current sensors)
Product Details
Diris Digiware I modules measure consumption and monitor the system at the closest point to the loads.
The flexibility of these modules allows you to allocate the loads to be measured or monitored through independent current inputs
Measured Parameters
Diris I-30: kWh, kVarh, kVAh, L1, L2, L3, N, Total P, Total Q, Total S, Total PF, 3 current inputs
Diris I-31: kWh, kVarh, kVAh, L1, L2, L3, N, Total P, Total Q, Total S, Total PF, Load Curves, Multi-tariff, 3 current inputs
Diris I-33: kWh, kVarh, kVAh, L1, L2, L3, N, Total P, Total Q, Total S, Total PF, P, Q, S, PF per phase, 3 current inputs
Diris I-35: - U12, U23, U31, V1, V2, V3, f - U system, V system - P h/N unbalance (Vnb, Vnba, Vdir, Vinv, Vhom), P h/Ph unbalance (Unb, Unba, Udir, Uinv), T HDv1, THDv2, THDv3, THDu12, THDu23, THDu31, Individual harmonics U & V (up to rank 63), Voltage dips, interruptions and swells (EN 50160), Alarms, History of average values
Product Specification
Model Types:
- I-30 Metering 3 Current Inputs 4829-0110
- I-31 Metering 3 Current Inputs 4829-0111
- I-33 Monitoring 3 Current Inputs 4829-0128
- I-35 Analysis 3 Current Inputs 4829-0130
