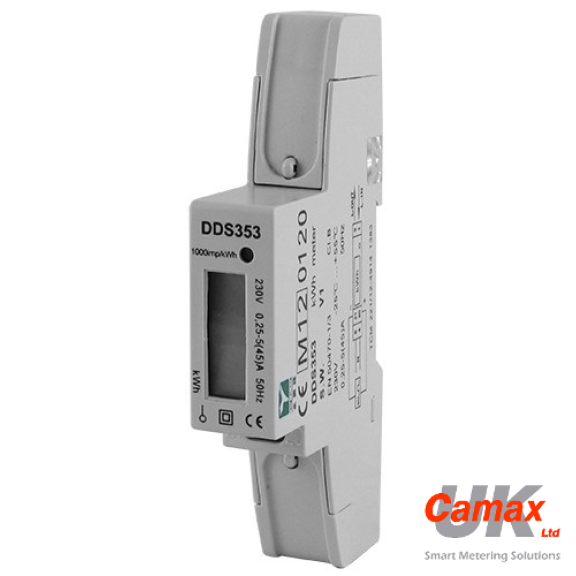

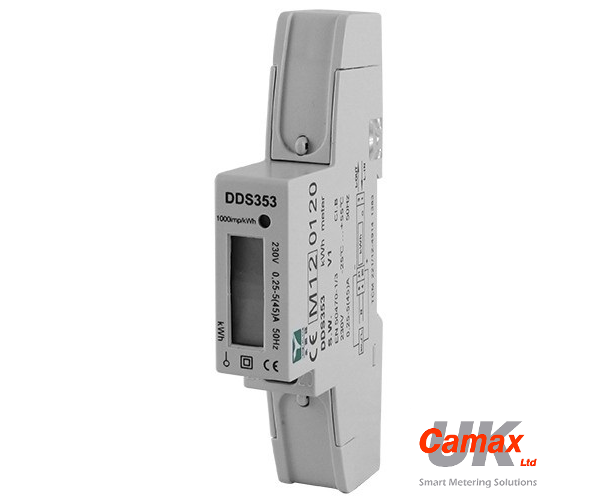

DDS353 MID Certified 45A kWh Meter
- MID approved
- Housing: 1-DIN Rail Module
- Single Phase
- Current: 45A Direct Connected
- Voltage: 230/240V (+/- 20%)
- Pulse output as standard: 1000 imp/kWh
- LCD Display: 5+2= 99
Product Details
The DDS353 is the ideal choice for cost-effective sub-billing with MID Certification, easy housing (1-DIN) and on-screen kWh display (LCD).
As standard the meter's Pulse rate is set to: 1000 imp/kWh
Product Specification
- MID approved
- Housing: 1-DIN
- Voltage: 230V ± 20%
- Current: (5) 45A
- Accuracy Class: B
- Standard: EN50470-1 / EN50470-3
- Frequency: 50Hz ±10%
- Impulse Constant: Red LED 1000imp/kWh
- Display: LCD 5+2= 99999.99kW
- Power Consumption: ≤8VA ≤0.4W
- Temperature Range: -25⁰C……+55⁰C
- Pulse Width: 80mS
- Max Terminal Wire: 12mm₂
