Crompton Instruments SC5 Split-core Current Transformers series with 80 x 160mm aperture (1000-5000/5A)

SC5 Current Transformers are equivalent of DBP816 CT's

  • Accuracy: Class 1 ( Class 0.5 available )
  • Dimensions: 80 x 160mm
  • Current: 1000 to 5000A range
  • Split-core fitting (Retro-fit application)
Enquire Now

Product Details

Camax can supply ex-stock SC5 Split-core series with Current ratio's from 1000-5000A Primary outputs.

The aperture for the SC5's are 80 x 160mm (Equivalent to DBP816 Current Transformers).

SC5 models:

  • 1000:5A
  • 1250:5A
  • 1500:5A
  • 2000:5A
  • 2500:5A
  • 3000:5A
  • 4000:5A
  • 5000:5A

Product Specification

  • System voltage- 720V (0.72kV) maximum
  • Test voltage- 3kV for 1 minute
  • System frequency- 50/60Hz
  • Insulation-class E

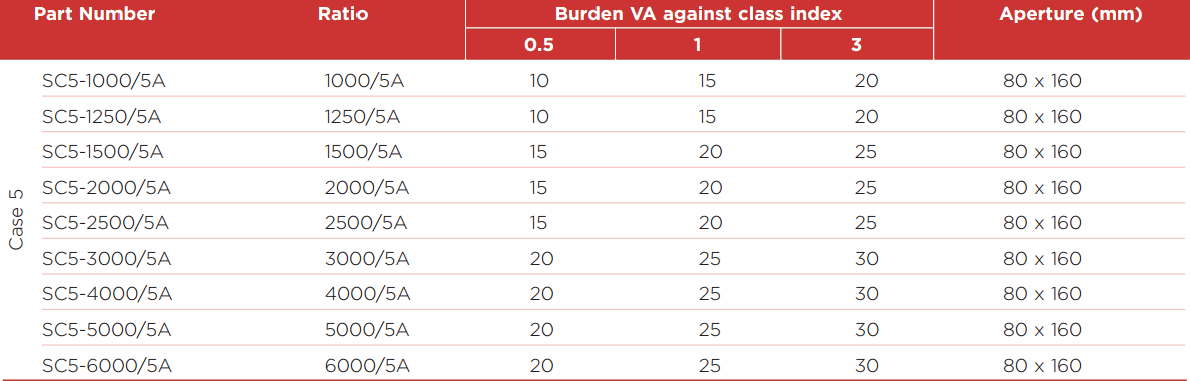

  • Accuracy- See secondary image
  • Overload withstand - 1.2 times rated current continuously
  • Short circuit thermal  -100 x rated primary for 1 second
  • Operating temperature -20˚C to +70˚C
  • Relative humidity - 0-90% (non condensing)
  • Compliant with - IEC/EN 60044-1, BS7626
  • Accuracy - Class 3, 1 & 0.5
  • Mounting hardware - Plug-in metal feet for wall or base mounting or moulded busbar mounting
  • Rated dynamic current = 2.55 x lht
  • Enclosure - Flame retardant grade classified UL 94V-O
