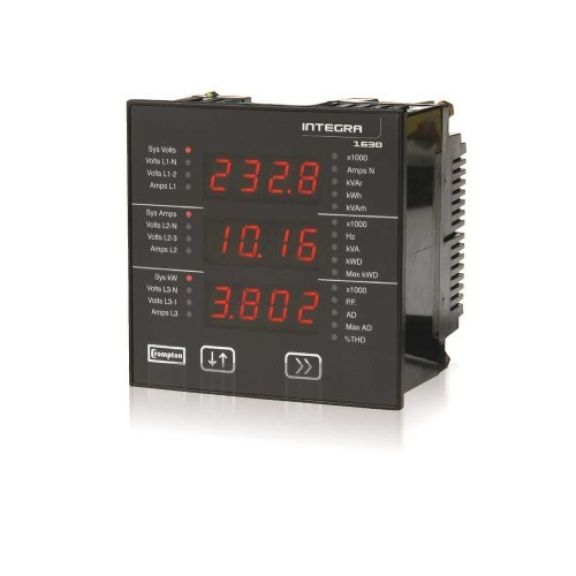

Crompton Instruments Integra 1630 Digital Metering System (INT1630-M-5-M-110)
INT-1630-M-5-M-100 (Modbus and 1 relay) can be supplied ex-stock
- Measurement, display and communication of electrical and power parameters
- High contrast LED or LCD display
- THD measurement and power quality data to 31st harmonic
- True rms and average sensing measurement
- Pulsed, analogue and digital outputs
- Modbus RTU RS485 protocol, Johnson Controls and Lonworks protocol interface options
- Fully programmable VT and CT ratios (9999 CT ; 400kV VT)
- IP address assignment (factory settings 192.168.1.100)
Product Details
Integra 1630 digital metering system provides high accuracy 0.2% measurement, display and communication of all major electrical and power quality parameters including total harmonic distortion (THD) measurement up to the 31st harmonic.
To suit multiple applications, the INT1630 measures single-phase, three-phase-three-wire and three-phase four-wire circuits, all selectable at the point of installation.
INPUT. 140-277V L-N 3~ (241-480V L-L 3~), INPUT. 5A CT OPERATED, AUXILIARY. 100-250V AC/DC
Product Specification
Inputs/outputs
- Voltage input: 140-277V L-N 3P (241-480V L-L 3P)
- Current input: 5A CT operated
- Auxiliary: 100-250V AC/DC
- Accuracy: CL0.2
- Communications: Modbus RS485 and 1 Pulse output
Parameters
- System (average) volts
- System (average) current
- System (total) kW
- System volts (average) THD%
- System current (average) THD%
- Volts L1 – N, L2 – N, L3 – N
- Volts L1 – L2, L2 – L3, L3 – L1
- Volts L1 – N THD%
- Volts L2 – N THD%
- Volts L3 – N THD%
- Volts L1 – L2 THD%
- Volts L2 – L3 THD%
- Volts L3 – L1 THD%
- Current L1, L2, L3
- Current line 1 THD%
- Current line 2 THD%
- Current line 3 THD%
- Neutral current
- Frequency
- Power factor
- kVAr, kVA, kW
- kW Hr import,
- kVArh import,
- kW demand
- Current demand
- Maximum kW
- Maximum current
- Hours run
