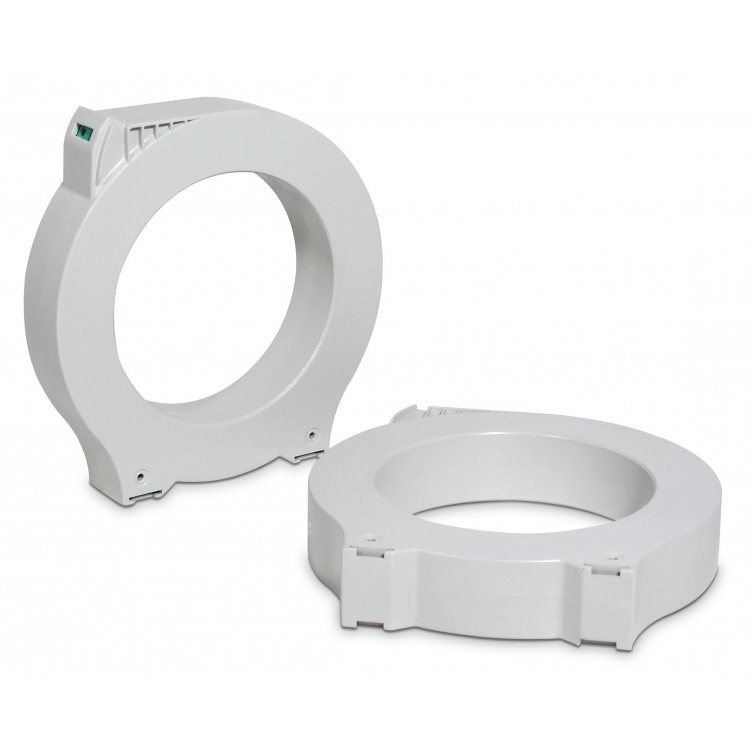

Circutor WGC Earth Leakage Relay Current Transformer series

Product Details

The WGC CT series is designed for the RGU Earth Leakage relay and has a variety of apertures for different system requirements (25mm-140mm).

Designed to work with the relays of the WGC series, the sensitivity of the transformer-relay set is established by the connected relay.

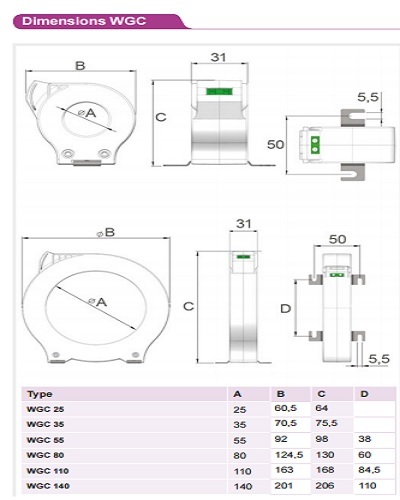

Product Specification

• WGC 25: Aperture= 25,Width= 60.5, Height 64 (WGC 25)
• WGC 35:Aperture= 35, Width= 70,5, Height 75.5 (WGC 35)
• WGC 55: Aperture=55, Width= 92, Height 98 (WGC 55)
• WGC 80: Aperture=80, Width= 124.5, Height 130 (WGC 80)
• WGC 110: Apperture=110,Width= 163, Height 168 (WGC110)
• WGC 140: Aperture= 140, Width= 201, Height 206 (WGC140)

Product Downloads

• WGC Earth Leakage Relay Current Transformer Range Datasheet (0.24MB)
