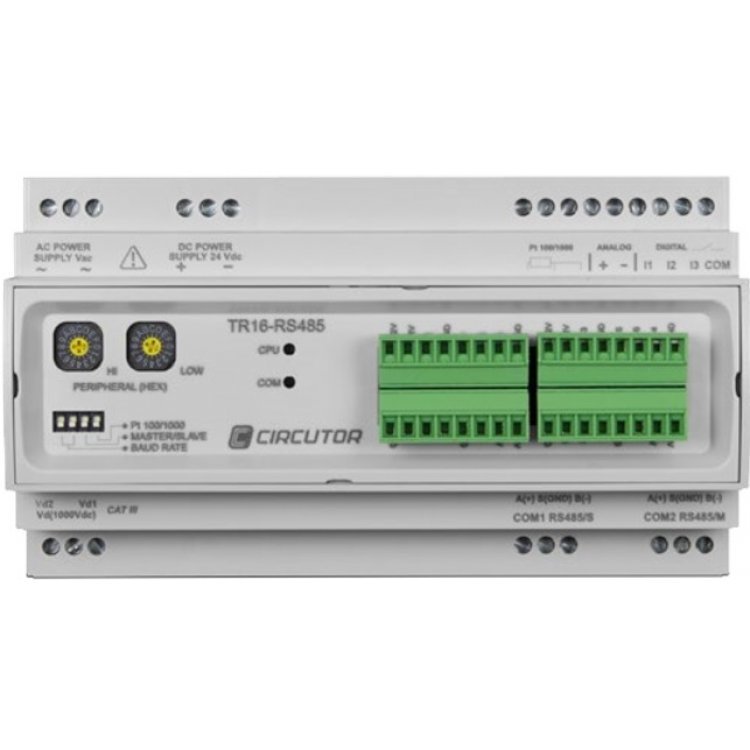

Circutor TRH16-RS485-25 - Measurement device for up to 16 strings (E80005)
- Compact design (9-DIN Modules)
- String control, up to 8 strings for photovoltaic applications (8 digital inputs voltage-free)
- 2 RS485 Modbus RTU communications ports
- Up to 2 M/TR8-25x4 (8 channels)
- 3 voltage-free digital inputs (alarms)
- 1 input for the temperature probe
- Voltage measurement of 1000V DC
Product Details
The Circutor TR16-RS485 Multi-channel DC voltage and current analyser for solar applications. TR16 analysers have been specifically designed control strings in photovoltaic plants; it recognises the level of current generated in the different groups in real time, and therefore measures the current flowing through the external sensors
Measurement Modules:
- M/TR-25A x2, 2 circuits 25A
- M/TR-25A x4, 4 circuits 25A
- M/TR-100A, 1 circuit Ø30mm
- M/TR-100A-CC-28mm, 1 circuit 100A 1 circuit Ø28mm
- M/TR-100A, 1 circuit 200A
Product Specification
